RFD77101

RF DigitalRF Digital

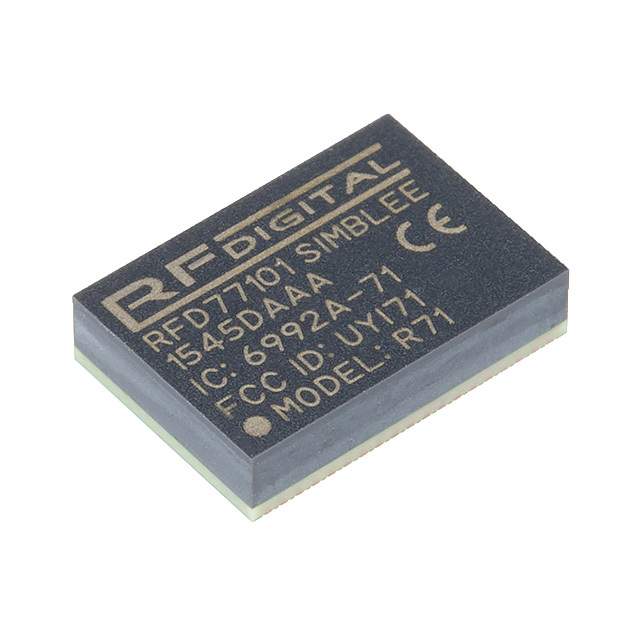

RFD77101 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: RFD77101
Manufacturer/Brand: RF Digital
Product description RF TXRX MOD BLUETOOTH CHIP ANT
Datasheets: 1.RFD77101.pdf2.RFD77101.pdf3.RFD77101.pdf4.RFD77101.pdf5.RFD77101.pdf6.RFD77101.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 5289 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 5289 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of RFD77101

Part Number RFD77101 Manufacturer RF Digital
Description RF TXRX MOD BLUETOOTH CHIP ANT Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 5289 pcs Data sheet 1.RFD77101.pdf2.RFD77101.pdf3.RFD77101.pdf4.RFD77101.pdf5.RFD77101.pdf6.RFD77101.pdf
Voltage - Supply 1.8 V ~ 3.6 V Utilized IC / Part -
Series Simblee™ Serial Interfaces I²C, SPI, UART
Sensitivity -96dBm RF Family/Standard Bluetooth
Protocol Bluetooth v4.0 Power - Output 4dBm
Packaging Tray Package / Case 45-LGA Module
Other Names 1562-1034 Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 6 (Time on Label)
Modulation - Memory Size 128kB Flash, 24kB RAM
Lead Free Status / RoHS Status Lead free / RoHS Compliant Frequency 2.4GHz
Data Rate 4Mbps Current - Transmitting 8mA ~ 12mA
Current - Receiving 10mA ~ 13mA Antenna Type Integrated, Chip
