TM8116NLT

Pulse Electronics Corporation

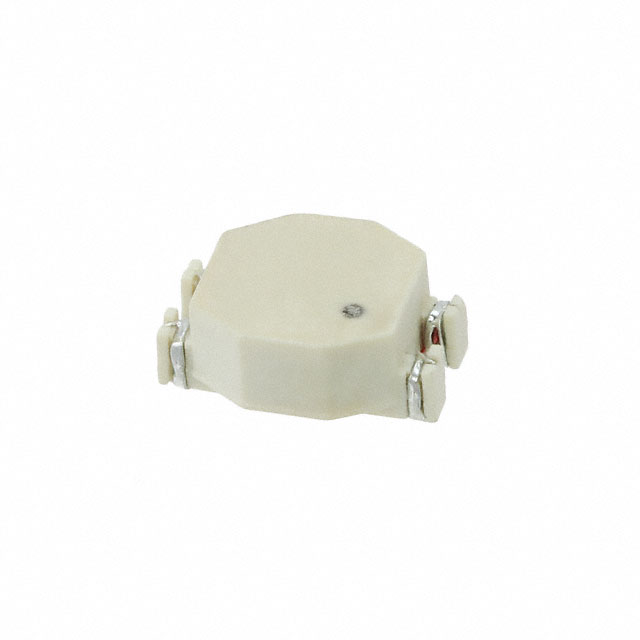

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TM8116NLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CMC 470UH 2LN 800OHM SMD AECQ200
Datasheets:	TM8116NLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	56612 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 56612 pcs

Reference Price (In US Dollars)

1600 pcs: $0.535

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.535

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TM8116NLT

Part Number	TM8116NLT	Manufacturer	Pulse Electronics Corporation
Description	CMC 470UH 2LN 800OHM SMD AECQ200	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	56612 pcs	Data sheet	TM8116NLT.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	0.350" L x 0.248" W (8.90mm x 6.30mm)	Series	-
Ratings	AEC-Q200	Packaging	Tape & Reel (TR)
Package / Case	Horizontal, 4 PC Pad	Operating Temperature	-40°C ~ 125°C
Number of Lines	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	470µH @ 100kHz
Impedance @ Frequency	800 Ohms @ 100MHz	Height (Max)	0.161" (4.10mm)
Filter Type	-	Features	-
Detailed Description	470µH @ 100kHz 2 Line Common Mode Choke Surface Mount 800 Ohms @ 100MHz DCR 300 mOhm	DC Resistance (DCR) (Max)	300 mOhm
Current Rating (Max)	-	Approvals	-

Shipment
After-Sales
Datasheets

★ FREE SHIPPING VIA DHL/FEDEX/UPS IF ORDER AMOUNT OVER 1,000 USD.
(ONLY FOR Integrated Circuits, Circuit Protection, RF/IF and RFID, Optoelectronics, Sensors, Transducers, Transformers, Isolators, Switches, Relays)

FEDEX	www.FedEx.com	From $35.00 basic shipping fee depend on zone and country.
DHL	www.DHL.com	From $35.00 basic shipping fee depend on zone and country.
UPS	www.UPS.com	From $35.00 basic shipping fee depend on zone and country.
TNT	www.TNT.com	From $35.00 basic shipping fee depend on zone and country.

★ Delivery time will need 2-4 Days to most of country all over the world by DHL/UPS/FEDEX/TNT.

Please feel free to contact us if you have any questions about the shipment. E-mail us [email protected]

AFTER-SALES GUARANTEE

Each product from Ocean-Components.com has been given a warranty period of 1 YEAR .During this period , we could provide free technical maintenance if there are any problems about our products.
If you find quality problems about our products after receiving them, you could test them and apply for unconditional refund if it can be proved.
If the products are defective or they don't working, you can return to us within 1 YEAR, all transportation and customs charges of the goods are borne by us.
