PH0809CNL

Pulse Electronics Corporation

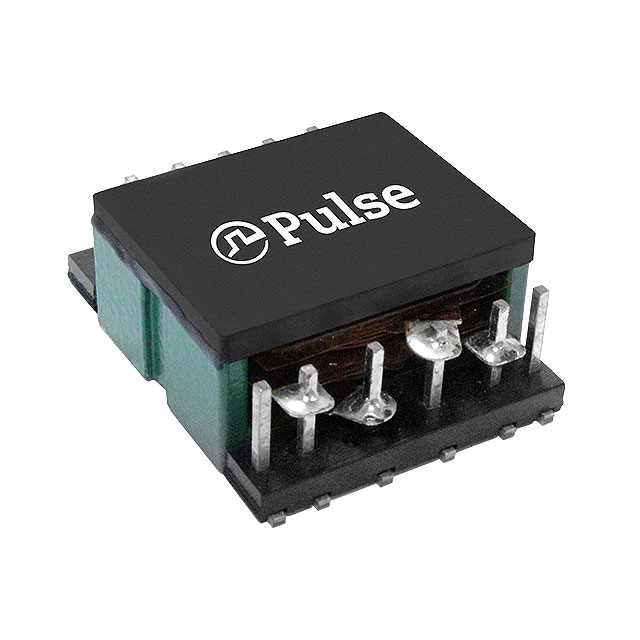

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PH0809CNL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	XFMR DC/DC CONV SMD
Datasheets:	1.PH0809CNL.pdf 2.PH0809CNL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	19214 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 19214 pcs

Reference Price (In US Dollars)

1 pcs: $3.421

10 pcs: $2.62

30 pcs: $2.22

60 pcs: $2.183

120 pcs: $2.074

270 pcs: $2.052

510 pcs: $2.023

1020 pcs: $2.001

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.421

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PH0809CNL

Part Number	PH0809CNL	Manufacturer	Pulse Electronics Corporation
Description	XFMR DC/DC CONV SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19214 pcs	Data sheet	1.PH0809CNL.pdf 2.PH0809CNL.pdf
Voltage - Primary	-	Voltage - Isolation	1500Vrms
Voltage - Auxiliary	-	Type	For DC/DC Converters
Style	Planar	Size / Dimension	0.850" L x 0.970" W (21.59mm x 24.65mm)
Series	PH08XXCNL	Packaging	Tray
Other Names	553-3672	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Intended Chipset	-	Inductance @ Frequency	-
Height - Seated (Max)	0.388" (9.85mm)	Frequency	200 ~ 700kHz
Footprint	0.850" L x 0.970" W (21.59mm x 24.65mm)	Chipset Manufacturer	-
Applications	-
