PF0553.103NLT

Pulse Electronics Corporation

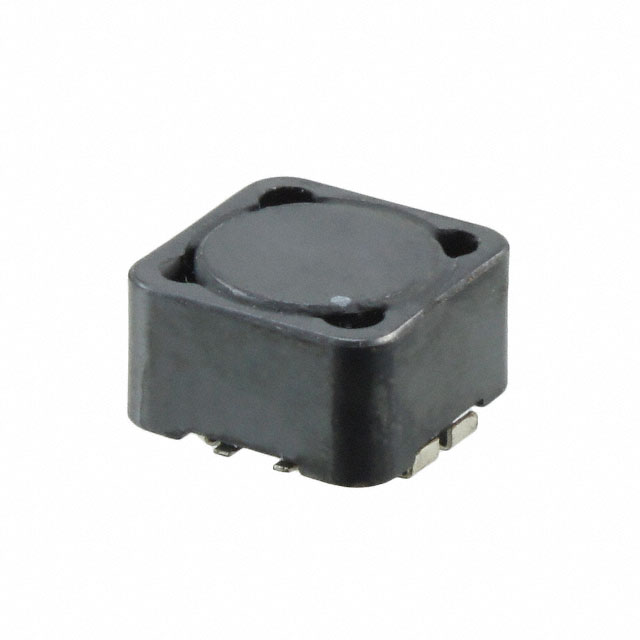

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PF0553.103NLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	INDUCT ARRAY 2 COIL 10.5UH SMD
Datasheets:	PF0553.103NLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	54969 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 54969 pcs

Reference Price (In US Dollars)

1 pcs: $0.875

10 pcs: $0.806

100 pcs: $0.564

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.875

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PF0553.103NLT

Part Number	PF0553.103NLT	Manufacturer	Pulse Electronics Corporation
Description	INDUCT ARRAY 2 COIL 10.5UH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	54969 pcs	Data sheet	PF0553.103NLT.pdf
Tolerance	±20%	Size / Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Shielding	Shielded	Series	PF0553NL
Ratings	-	Packaging	Original-Reel®
Package / Case	Nonstandard	Other Names	553-2030-6
Operating Temperature	-40°C ~ 125°C	Number of Coils	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance - Connected In Series	42µH	Inductance - Connected In Parallel	10.5µH
Height	0.315" (8.00mm)	Detailed Description	Shielded 2 Coil Inductor Array 42µH Inductance - Connected in Series 10.5µH Inductance - Connected in Parallel 17 mOhm Max DC Resistance (DCR) - Parallel 6A Nonstandard
DC Resistance (DCR) - Series	67 mOhm Max	DC Resistance (DCR) - Parallel	17 mOhm Max
Current Saturation - Series	5.6A	Current Saturation - Parallel	11A
Current Rating - Series	3A	Current Rating - Parallel	6A
