PE-64978NL

Pulse Electronics Corporation

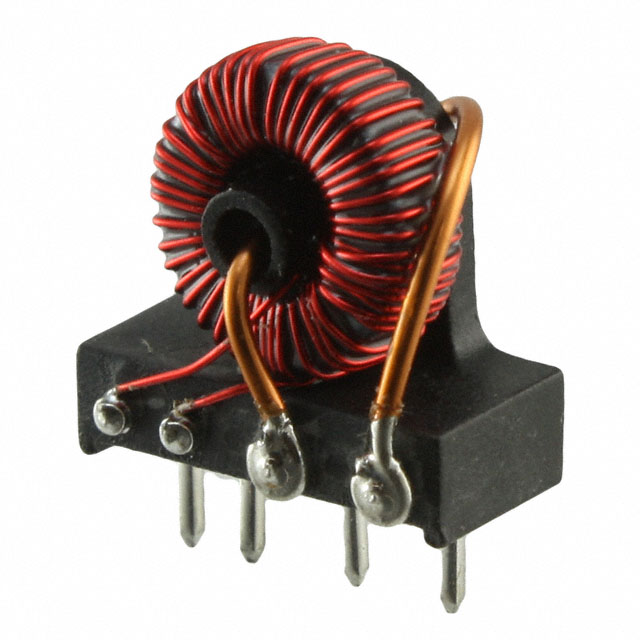

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PE-64978NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CURR SENSE XFMR 20A T/H
Datasheets:	PE-64978NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13795 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 13795 pcs

Reference Price (In US Dollars)

1 pcs: $3.747

10 pcs: $2.872

35 pcs: $2.433

70 pcs: $2.393

105 pcs: $2.273

280 pcs: $2.25

525 pcs: $2.218

1015 pcs: $2.194

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.747

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PE-64978NL

Part Number	PE-64978NL	Manufacturer	Pulse Electronics Corporation
Description	CURR SENSE XFMR 20A T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13795 pcs	Data sheet	PE-64978NL.pdf
Weight	-	Type	Invasive
Turns Ratio - Primary:Secondary	-	Termination Style	PC Pin
Size / Dimension	0.550" L x 0.380" W (13.97mm x 9.65mm)	Series	THT
Ratings	-	Packaging	Tray
Other Names	553-1889-5 PE-64978NL-ND PE64978NL	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	4mH
Height - Seated (Max)	0.580" (14.73mm)	Frequency Range	200kHz ~ 500kHz
Energy Time (E.T.)	-	Detailed Description	20A Current Sense Transformer 200kHz ~ 500kHz 6 mOhm Primary, 240 mOhm Secondary 4mH Through Hole
DC Resistance (DCR)	6 mOhm Primary, 240 mOhm Secondary	Current Ratio	50:1
Current Rating	20A
