PE-51718NL

Pulse Electronics Corporation

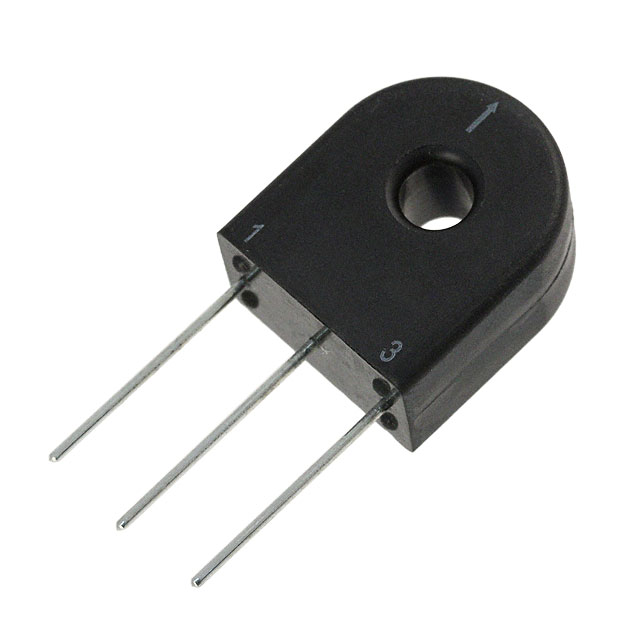

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PE-51718NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CURR SENSE XFMR 20A T/H
Datasheets:	PE-51718NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	53097 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 53097 pcs

Reference Price (In US Dollars)

1 pcs: $1.263

60 pcs: $0.884

120 pcs: $0.758

540 pcs: $0.674

1020 pcs: $0.632

2520 pcs: $0.611

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.263

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PE-51718NL

Part Number	PE-51718NL	Manufacturer	Pulse Electronics Corporation
Description	CURR SENSE XFMR 20A T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	53097 pcs	Data sheet	PE-51718NL.pdf
Type	Invasive	Turns Ratio - Primary:Secondary	-
Termination Style	PC Pin	Size / Dimension	0.670" L x 0.390" W (17.01mm x 9.90mm)
Series	THT	Ratings	-
Packaging	Tray	Other Names	553-1547 PE-51718NL-ND PE51718NL
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	20mH	Height - Seated (Max)	0.800" (20.32mm)
Frequency Range	20kHz ~ 200kHz	Energy Time (E.T.)	-
Detailed Description	20A Current Sense Transformer 20kHz ~ 200kHz 100 Ohm Primary, 1.4 Ohm Secondary 20mH Through Hole	DC Resistance (DCR)	100 Ohm Primary, 1.4 Ohm Secondary
Current Ratio	100CT:1	Current Rating	20A
