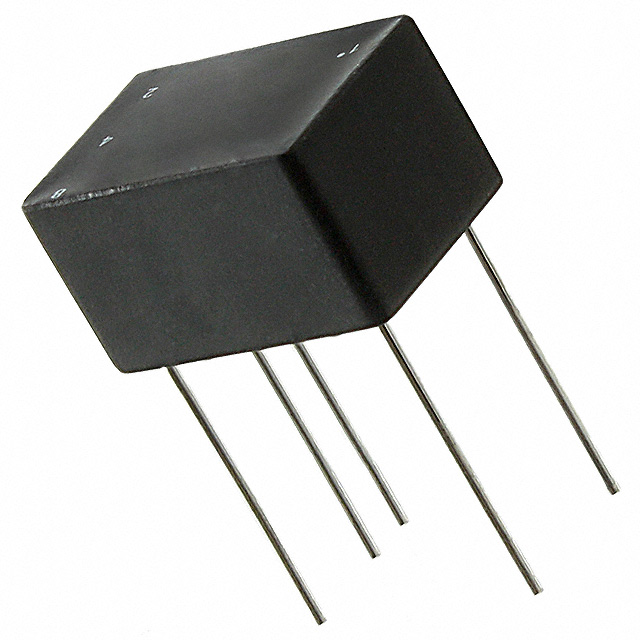

PE-5156XNL

Pulse Electronics Corporation

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PE-5156XNL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	TRANSFORMER 1:1 700VRMS
Datasheets:	PE-5156XNL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16636 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 16636 pcs

Reference Price (In US Dollars)

1 pcs: $3.283

10 pcs: $2.552

45 pcs: $2.483

90 pcs: $2.138

135 pcs: $2.041

270 pcs: $2.00

540 pcs: $1.966

1035 pcs: $1.931

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.283

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PE-5156XNL

Part Number	PE-5156XNL	Manufacturer	Pulse Electronics Corporation
Description	TRANSFORMER 1:1 700VRMS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16636 pcs	Data sheet	PE-5156XNL.pdf
Weight	0.14 oz (3.99g)	Turns Ratio - Primary:Secondary	1:1
Transformer Type	-	Size / Dimension	0.650" L x 0.443" W (16.51mm x 11.25mm)
Series	-	Packaging	Tube
Other Names	553-1878-5 PE-5156XNL-ND PE5156XNL	Operating Temperature	0°C ~ 70°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	1.2mH
Height - Seated (Max)	0.400" (10.16mm)	Energy Time (E.T.)	77V µS
