PA3747.205NL

Pulse Electronics Corporation

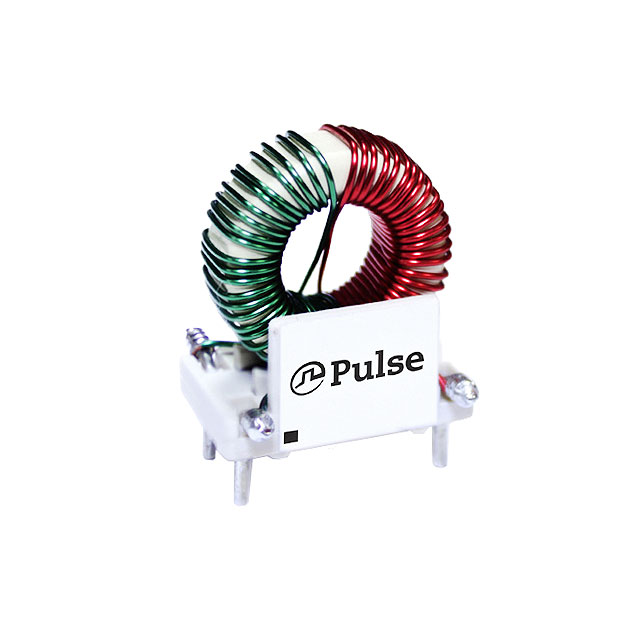

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA3747.205NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	COMMON MODE CHOKE 4A 2LN TH
Datasheets:	PA3747.205NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	37390 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 37390 pcs

Reference Price (In US Dollars)

950 pcs: $0.986

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.986

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA3747.205NL

Part Number	PA3747.205NL	Manufacturer	Pulse Electronics Corporation
Description	COMMON MODE CHOKE 4A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	37390 pcs	Data sheet	PA3747.205NL.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	0.760" L x 0.717" W (19.30mm x 18.20mm)	Series	PA3747
Ratings	-	Packaging	Tray
Package / Case	Vertical, 4 PC Pin	Other Names	553-2666 PA3747.205NL-ND
Operating Temperature	-40°C ~ 125°C	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height (Max)	0.902" (22.90mm)	Filter Type	-
Features	-	Detailed Description	2 Line Common Mode Choke Through Hole 4A DCR 25.5 mOhm
DC Resistance (DCR) (Max)	25.5 mOhm	Current Rating (Max)	4A
Approvals	-
