PA1005.050NLT

Pulse Electronics Corporation

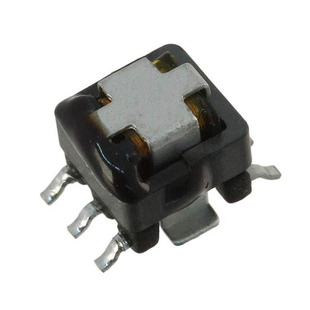

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA1005.050NLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CURR SENSE XFMR 1:50 20A SMD
Datasheets:	PA1005.050NLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	103809 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 103809 pcs

Reference Price (In US Dollars)

900 pcs: $0.451

1800 pcs: $0.399

6300 pcs: $0.366

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.451

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA1005.050NLT

Part Number	PA1005.050NLT	Manufacturer	Pulse Electronics Corporation
Description	CURR SENSE XFMR 1:50 20A SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	103809 pcs	Data sheet	PA1005.050NLT.pdf
Weight	0.014 oz (0.4g)	Type	Invasive
Turns Ratio - Primary:Secondary	1:50	Termination Style	Gull Wing
Size / Dimension	0.284" L x 0.330" W (7.21mm x 8.38mm)	Series	PA1005.XXXNL
Ratings	-	Packaging	Tape & Reel (TR)
Other Names	553-1527-2 PA1005.050NLT-ND PA1005050NLT	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	500µH
Height - Seated (Max)	0.217" (5.50mm)	Frequency Range	50kHz ~ 1MHz
Energy Time (E.T.)	-	Detailed Description	20A 1:50 Current Sense Transformer 50kHz ~ 1MHz 0.75 mOhm Primary, 1.5 Ohm Secondary 500µH Surface Mount
DC Resistance (DCR)	0.75 mOhm Primary, 1.5 Ohm Secondary	Current Ratio	-
Current Rating	20A
