PA0803NL

Pulse Electronics Corporation

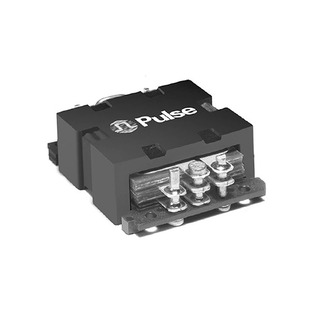

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA0803NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	XFMR DC/DC CONV SMD
Datasheets:	PA0803NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15468 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 15468 pcs

Reference Price (In US Dollars)

1 pcs: $3.686

10 pcs: $2.824

40 pcs: $2.393

80 pcs: $2.354

120 pcs: $2.236

280 pcs: $2.212

520 pcs: $2.181

1000 pcs: $2.158

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.686

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA0803NL

Part Number	PA0803NL	Manufacturer	Pulse Electronics Corporation
Description	XFMR DC/DC CONV SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15468 pcs	Data sheet	PA0803NL.pdf
Voltage - Primary	18 ~ 76V	Voltage - Isolation	1500Vrms
Voltage - Auxiliary	-	Type	For DC/DC Converters
Style	Planar	Size / Dimension	0.850" L x 0.920" W (21.60mm x 23.37mm)
Series	PA08XXNL	Other Names	553-2906
Operating Temperature	-40°C ~ 125°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Intended Chipset	-
Inductance @ Frequency	-	Height - Seated (Max)	0.348" (8.85mm)
Frequency	200 ~ 700kHz	Footprint	0.850" L x 0.920" W (21.60mm x 23.37mm)
Chipset Manufacturer	-	Applications	-
