TOP250FN

Power Integrations

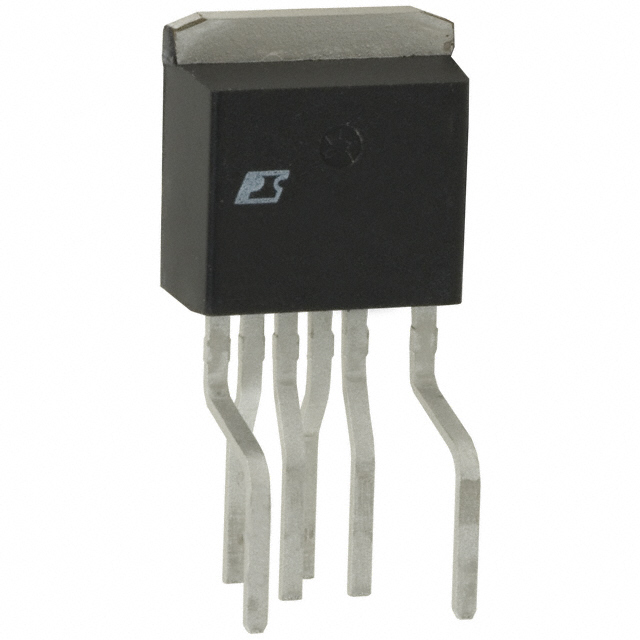

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TOP250FN
Manufacturer/Brand:	Power Integrations
Product description	IC OFFLINE SWIT UVLO HV TO262
Datasheets:	TOP250FN.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	22355 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 22355 pcs

Reference Price (In US Dollars)

150 pcs: $1.605

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.605

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TOP250FN

Part Number	TOP250FN	Manufacturer	Power Integrations
Description	IC OFFLINE SWIT UVLO HV TO262	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22355 pcs	Data sheet	TOP250FN.pdf
Voltage - Supply (Vcc/Vdd)	-	Voltage - Breakdown	700V
Topology	Flyback	Supplier Device Package	TO-262-7C
Series	TOPSwitch®-GX	Power (Watts)	290W
Packaging	Tube	Package / Case	TO-262-7 (Formed Leads), 6 Leads
Output Isolation	Isolated	Other Names	596-1169 TOP250FN-ND
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Internal Switch(s)	Yes
Frequency - Switching	66kHz ~ 132kHz	Fault Protection	Current Limiting, Over Temperature, Over Voltage
Duty Cycle	66.8%	Detailed Description	Converter Offline Flyback Topology 66kHz ~ 132kHz TO-262-7C
Control Features	Frequency Control
