TNY289KG

Power Integrations

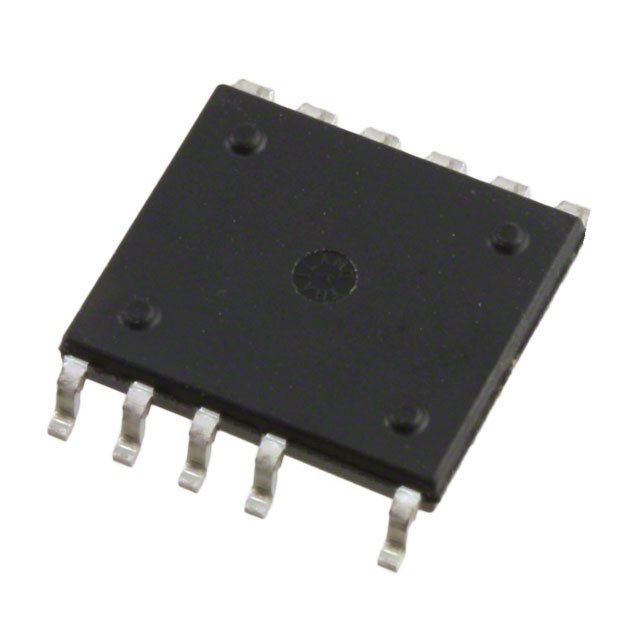

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TNY289KG
Manufacturer/Brand:	Power Integrations
Product description	IC OFF-LINE SWITCH PWM 12SOP
Datasheets:	TNY289KG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	74397 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 74397 pcs

Reference Price (In US Dollars)

1 pcs: $0.768

10 pcs: $0.694

48 pcs: $0.62

144 pcs: $0.558

288 pcs: $0.496

528 pcs: $0.434

1008 pcs: $0.359

2544 pcs: $0.335

5040 pcs: $0.322

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.768

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TNY289KG

Part Number	TNY289KG	Manufacturer	Power Integrations
Description	IC OFF-LINE SWITCH PWM 12SOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	74397 pcs	Data sheet	TNY289KG.pdf
Voltage - Supply (Vcc/Vdd)	-	Voltage - Breakdown	725V
Topology	Flyback	Supplier Device Package	12-ESOP
Series	TinySwitch®-4	Power (Watts)	25W
Packaging	Tube	Package / Case	12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad
Output Isolation	Isolated	Other Names	596-1791 TNY289KG-ND
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Internal Switch(s)	Yes
Frequency - Switching	124kHz ~ 140kHz	Fault Protection	Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit
Duty Cycle	67%	Detailed Description	Converter Offline Flyback Topology 124kHz ~ 140kHz 12-ESOP
Control Features	EN
