LNK4022S-TL

Power Integrations

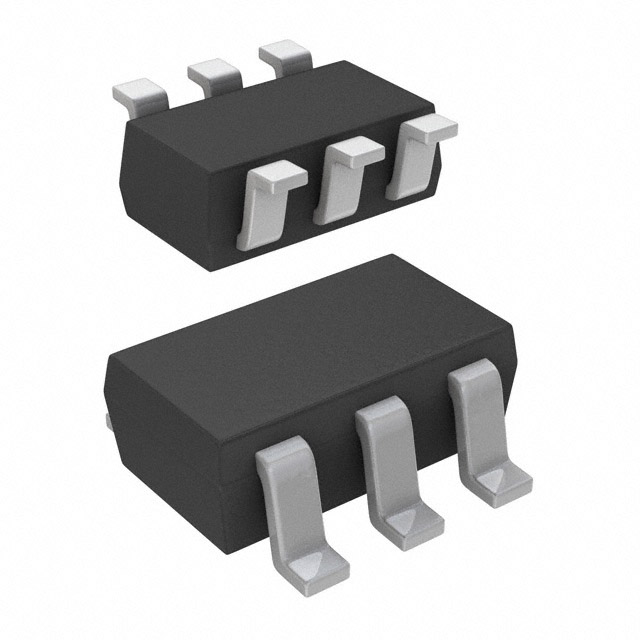

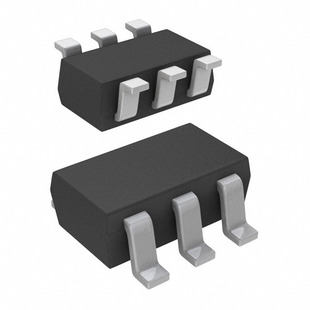

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LNK4022S-TL
Manufacturer/Brand:	Power Integrations
Product description	IC OFF-LINE CNTRLR 6.5W SOT23-6
Datasheets:	LNK4022S-TL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	372821 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 372821 pcs

Reference Price (In US Dollars)

10000 pcs: $0.069

30000 pcs: $0.065

50000 pcs: $0.064

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.069

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LNK4022S-TL

Part Number	LNK4022S-TL	Manufacturer	Power Integrations
Description	IC OFF-LINE CNTRLR 6.5W SOT23-6	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	372821 pcs	Data sheet	LNK4022S-TL.pdf
Voltage - Supply (Vcc/Vdd)	5 V ~ 16.5 V	Voltage - Breakdown	-
Topology	Flyback	Supplier Device Package	SOT-23-6
Series	LinkSwitch™-4	Power (Watts)	6.5W
Packaging	Tape & Reel (TR)	Package / Case	SOT-23-6
Output Isolation	Isolated	Other Names	596-1491-2
Operating Temperature	-25°C ~ 125°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Internal Switch(s)	No
Frequency - Switching	65kHz	Fault Protection	Over Temperature, Over Voltage, Short Circuit
Duty Cycle	-	Detailed Description	Converter Offline Flyback Topology 65kHz SOT-23-6
Control Features	-
