LCS701HG

Power Integrations

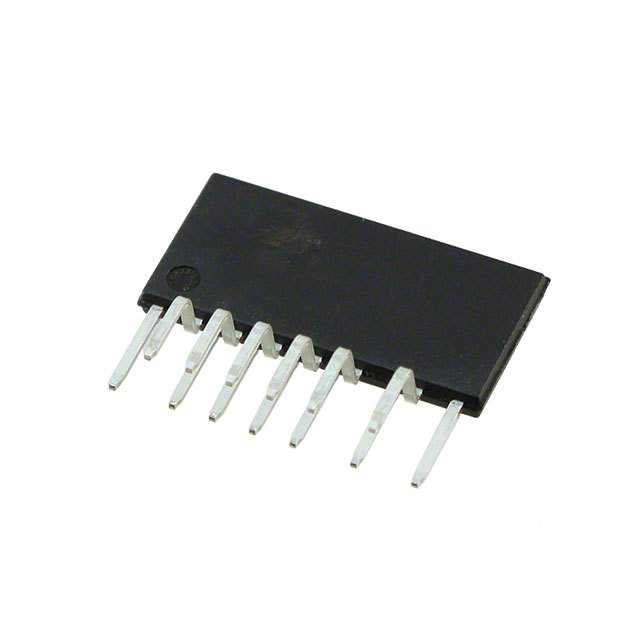

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LCS701HG
Manufacturer/Brand:	Power Integrations
Product description	IC LLC CTRL MFET 170W ESIP16C
Datasheets:	LCS701HG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31337 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 31337 pcs

Reference Price (In US Dollars)

1 pcs: $2.363

10 pcs: $2.111

30 pcs: $1.90

120 pcs: $1.731

270 pcs: $1.562

510 pcs: $1.402

1020 pcs: $1.182

2520 pcs: $1.123

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.363

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LCS701HG

Part Number	LCS701HG	Manufacturer	Power Integrations
Description	IC LLC CTRL MFET 170W ESIP16C	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31337 pcs	Data sheet	LCS701HG.pdf
Voltage - Supply	11.4 V ~ 15 V	Voltage - Load	11.4 V ~ 15 V
Technology	Power MOSFET	Supplier Device Package	16-ESIP
Series	HiperLCS™	Rds On (Typ)	1 Ohm
Packaging	Tube	Package / Case	16-SSIP, 13 Leads, Exposed Pad, Formed Leads
Output Configuration	Half Bridge	Other Names	596-1434-5
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Load Type	Inductive	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	On/Off	Features	Auto Restart, Slew Rate Controlled
Fault Protection	Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO	Detailed Description	Half Bridge Driver General Purpose Power MOSFET 16-ESIP
Current - Peak Output	7.7A	Current - Output / Channel	-
Applications	General Purpose
