Portescap
| Part Number | 35L048B2U | Manufacturer | Portescap |
|---|---|---|---|

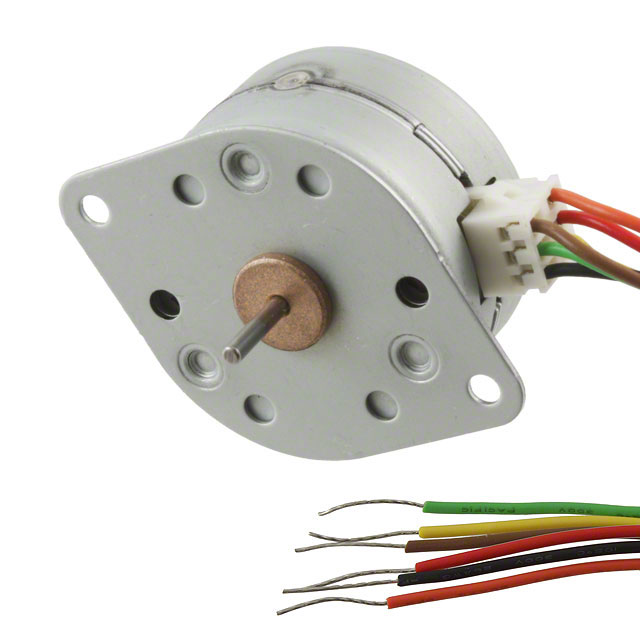

| Description | STEPPER MOTOR PM UNIPOLAR 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4187 pcs | Data sheet | 1.35L048B2U.pdf2.35L048B2U.pdf3.35L048B2U.pdf |
| Weight | 0.194 lb (88g) | Voltage - Rated | 12VDC |
| Type | Permanent Magnet | Torque - Holding (oz-in / mNm) | 3.5 / 25 |
| Termination Style | Wire Leads | Steps per Revolution | 48 |
| Step Angle | 7.5° | Size / Dimension | Round - 1.420" Dia (35.94mm) |
| Series | 35L | Rotor Inertia | 4gcm² |
| Other Names | 35L048B2U-N 35L048B2UN 403-1007 |
Operating Temperature | -20°C ~ 70°C |
| Mounting Hole Spacing | 1.650" (42.00mm) | Manufacturer Standard Lead Time | 12 Weeks |
| Length - Shaft and Bearing | 0.445" (11.30mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Round Shaft | Diameter - Shaft | 0.079" (2.00mm) |
| Detailed Description | Unipolar Stepper Motor 190mA 12VDC | Current Rating | 190mA |
| Coil Type | Unipolar | Coil Resistance | 64 Ohms |
| Approvals | - | Accuracy | ±15% |
