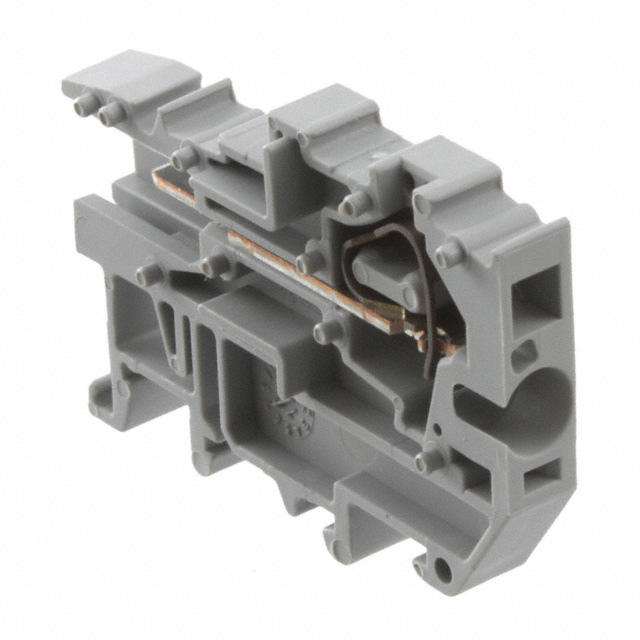

Phoenix Contact
| Part Number | 3043404 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK RCPT 1POS STR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 95176 pcs | Data sheet | 3043404.pdf |
| Wire Strip Length | 10mm | Wire Gauge or Range - mm² | 0.08-6mm² |
| Wire Gauge or Range - AWG | 10-28 AWG | Voltage - UL | 600V |
| Voltage - IEC | 800V | Type | Receptacle, Male Pins |
| Torque - Screw | - | Termination Style | Screwless - Spring Cage, Tension Clamp |
| Series | CLIPLINE COMBI SC | Screw Size | - |
| Positions Per Level | 1 | Plug Wire Entry | 180° |
| Pitch | - | Packaging | Bulk |
| Other Names | 277-9582 3043404-ND SC 4-NS/ 1-L SC4-NS/1-L |
Operating Temperature | - |
| Number of Positions | 1 | Number of Levels | 1 |
| Mounting Type | DIN Rail/Channel | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 1.697" (43.10mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Coupling, Interlocking (Side) |
| Detailed Description | 1 Position Terminal Block Receptacle, Male Pins 180° DIN Rail/Channel | Current - UL | 30A |
| Current - IEC | 32A | Contact Tail Length | - |
| Contact Mating Finish | - | Contact Material | - |
| Color | Gray |
