Phoenix Contact

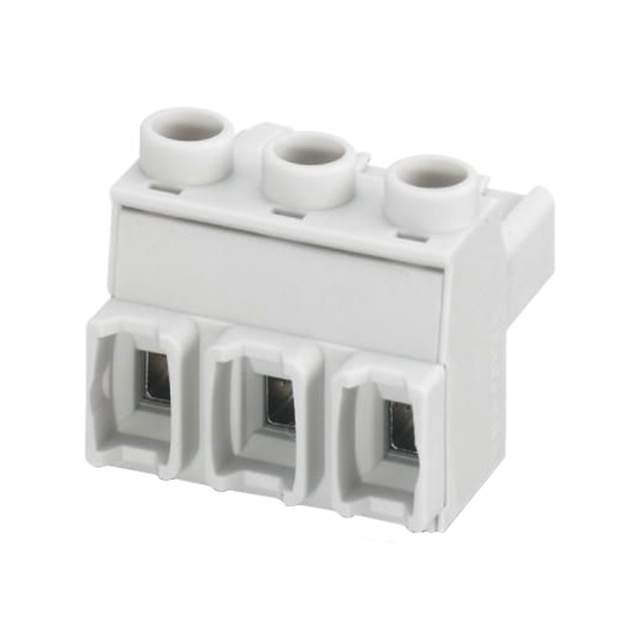

| Part Number | 2199553 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 3POS STR 7.25MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29433 pcs | Data sheet | 2199553.pdf |
| Wire Strip Length | 8mm | Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Wire Gauge or Range - AWG | 12-24 AWG | Voltage - UL | 600V |
| Voltage - IEC | 1kV | Type | Plug, Female Sockets |
| Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) | Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Series | COMBICON GMSTBT | Screw Size | M3 |
| Positions Per Level | 3 | Plug Wire Entry | 180° |
| Pitch | 0.285" (7.25mm) | Packaging | Bulk |
| Other Names | 2199553-ND 277-12403 GMSTBT 2 5 HV/3-ST-7 25 GY7035 |
Operating Temperature | - |
| Number of Positions | 3 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.677" (17.20mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Retention Latches (Non-Wire Side) |
| Detailed Description | 3 Position Terminal Block Plug, Female Sockets 0.285" (7.25mm) 180° Free Hanging (In-Line) | Current - UL | 16A |
| Current - IEC | 16A | Contact Tail Length | - |
| Contact Mating Finish | - | Contact Material | - |
| Color | Gray |
