Phoenix Contact
| Part Number | 1861506 | Manufacturer | Phoenix Contact |
|---|---|---|---|

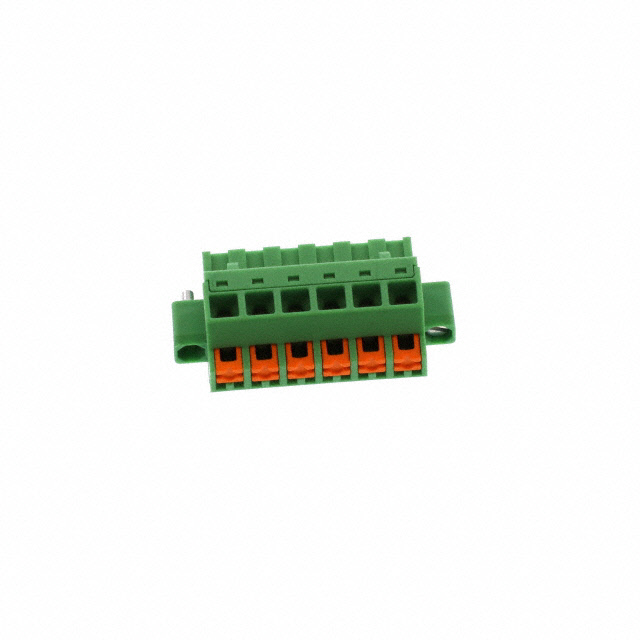

| Description | CONN TERM BLOCK PLUG 6POS 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22316 pcs | Data sheet | 1861506.pdf |
| Wire Strip Length | 10mm | Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Wire Gauge or Range - AWG | 12-26 AWG | Voltage - UL | 300V |
| Voltage - IEC | 320V | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | Screwless - Leg Spring, Push-In Spring |
| Series | COMBICON FKCOR | Screw Size | - |
| Positions Per Level | 6 | Plug Wire Entry | 90° |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 277-17562 FKCOR 2,5/ 6-STF-5,08 |
Operating Temperature | - |
| Number of Positions | 6 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.933" (23.70mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Lever Actuated, Mating Flange, Retention Latches (Non-Wire Side) |
| Detailed Description | 6 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 90° Free Hanging (In-Line) | Current - UL | 12A |
| Current - IEC | 12A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
