Phoenix Contact
| Part Number | 1757336 | Manufacturer | Phoenix Contact |
|---|---|---|---|

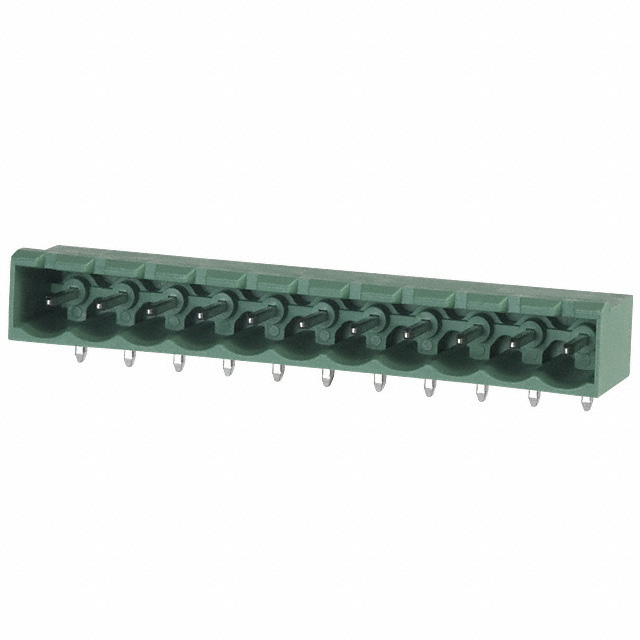

| Description | TERM BLOCK HDR 11POS 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 46393 pcs | Data sheet | 1757336.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Voltage - IEC | 400V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | COMBICON MSTBA | Screw Size | - |
| Positions Per Level | 11 | Plug Wire Entry | - |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 277-1115 MSTBA 2.5/11-G-5.08 MSTBA2,5/11-G-5,08 |
Operating Temperature | - |
| Number of Positions | 11 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.339" (8.61mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | 90°, Right Angle | Features | - |
| Detailed Description | 11 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole | Current - UL | 15A |
| Current - IEC | 12A | Contact Tail Length | 0.138" (3.50mm) |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
