ST1-L2-DC3V-F

PanasonicPanasonic

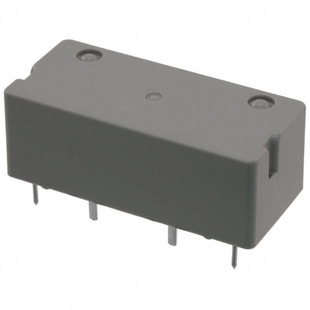

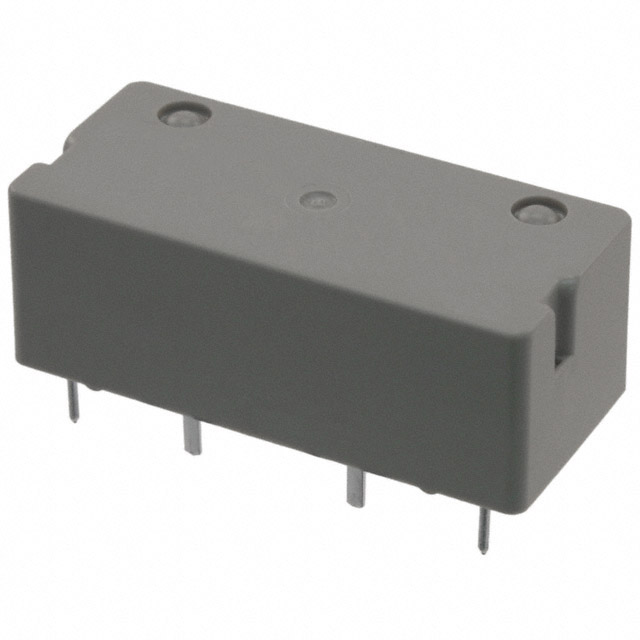

ST1-L2-DC3V-F Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: ST1-L2-DC3V-F
Manufacturer/Brand: Panasonic
Product description RELAY GENERAL PURPOSE DPST 8A 3V
Datasheets: ST1-L2-DC3V-F.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 9689 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 9689 pcs
Reference Price (In US Dollars)
1 pcs
$5.76
10 pcs
$5.12
25 pcs
$4.864
50 pcs
$4.608
100 pcs
$4.352
250 pcs
$3.968
500 pcs
$3.712
1000 pcs
$3.52
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$5.76

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of ST1-L2-DC3V-F

Part Number ST1-L2-DC3V-F Manufacturer Panasonic
Description RELAY GENERAL PURPOSE DPST 8A 3V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 9689 pcs Data sheet ST1-L2-DC3V-F.pdf
Turn On Voltage (Max) 2.4 VDC Turn Off Voltage (Min) -
Termination Style PC Pin Switching Voltage 380VAC, 250VDC - Max
Series ST Release Time 10ms
Relay Type General Purpose Packaging Tube
Other Names 255-3616
ST1L2DC3VF
Operating Temperature -40°C ~ 60°C
Operate Time 10ms Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Manufacturer Standard Lead Time 14 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Features Sealed - Fully
Detailed Description General Purpose Relay DPST-NO/NC (1 Form A, 1 From B) 3VDC Coil Through Hole Contact Rating (Current) 8A
Contact Material Silver Tin Oxide (AgSnO) Contact Form DPST-NO/NC (1 Form A, 1 From B)
Coil Voltage 3VDC Coil Type Latching, Dual Coil
Coil Resistance 40 Ohms Coil Power 240 mW
Coil Current 75.0mA
