Panasonic

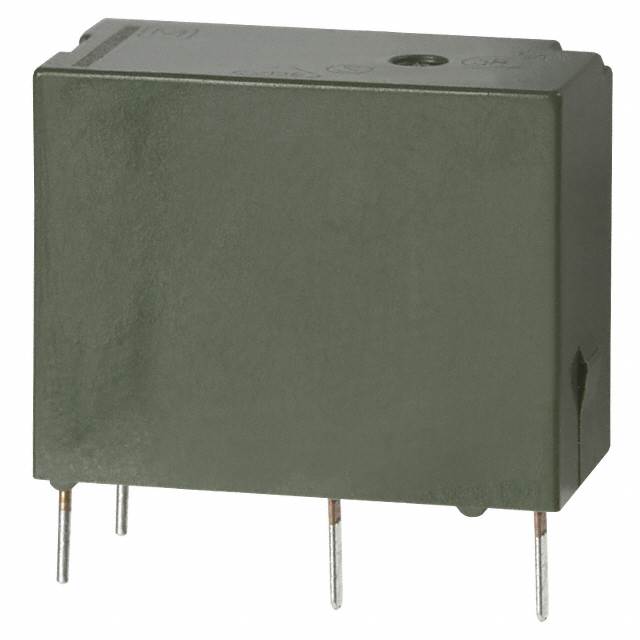

| Part Number | PQ1A-3V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GENERAL PURPOSE SPST 5A 3V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25306 pcs | Data sheet | PQ1A-3V.pdf |
| Turn On Voltage (Max) | 2.25 VDC | Turn Off Voltage (Min) | 0.15 VDC |
| Termination Style | PC Pin | Switching Voltage | 250VAC, 110VDC - Max |
| Series | PQ | Release Time | 10ms |
| Relay Type | General Purpose | Packaging | Tube |
| Other Names | 255-3449 PQ1A-3V-ND PQ1A3V |
Operating Temperature | -40°C ~ 70°C |
| Operate Time | 20ms | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Sealed - Fully |
| Detailed Description | General Purpose Relay SPST-NO (1 Form A) 3VDC Coil Through Hole | Contact Rating (Current) | 5A |
| Contact Material | Silver Nickel (AgNi) | Contact Form | SPST-NO (1 Form A) |
| Coil Voltage | 3VDC | Coil Type | Non Latching |
| Coil Resistance | 45 Ohms | Coil Power | 200 mW |
| Coil Current | 66.7mA |
