JW2ASN-B-DC12V

Panasonic

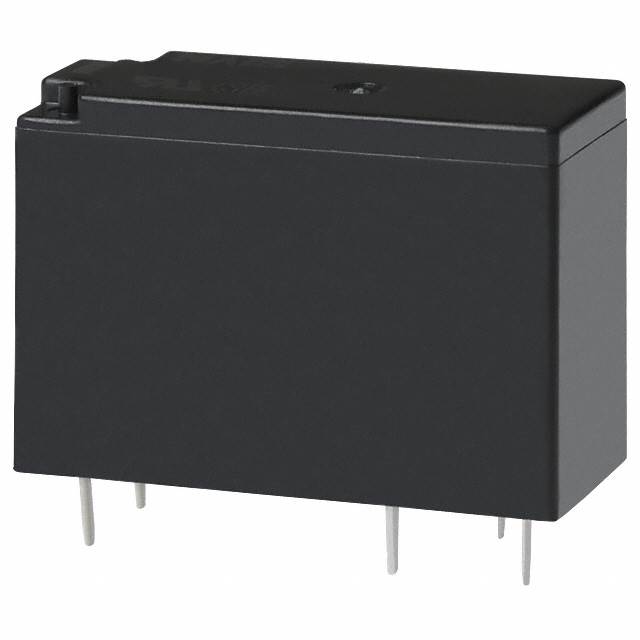

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JW2ASN-B-DC12V
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE DPST 5A 12V
Datasheets:	JW2ASN-B-DC12V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	51069 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 51069 pcs

Reference Price (In US Dollars)

1 pcs: $1.268

10 pcs: $1.188

25 pcs: $1.056

50 pcs: $1.003

100 pcs: $0.951

250 pcs: $0.845

500 pcs: $0.792

1000 pcs: $0.739

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.268

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JW2ASN-B-DC12V

Part Number	JW2ASN-B-DC12V	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE DPST 5A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	51069 pcs	Data sheet	JW2ASN-B-DC12V.pdf
Turn On Voltage (Max)	8.4 VDC	Turn Off Voltage (Min)	1.2 VDC
Termination Style	PC Pin	Switching Voltage	250VAC, 30VDC - Max
Series	JW	Release Time	5ms
Relay Type	General Purpose	Packaging	Tray
Other Names	255-3675 JW2ASN-B-DC12V-ND JW2ASNBDC12V	Operating Temperature	-40°C ~ 85°C
Operate Time	15ms	Mounting Type	Through Hole
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Insulation - Class B, Sealed - Fully	Detailed Description	General Purpose Relay DPST-NO (2 Form A) 12VDC Coil Through Hole
Contact Rating (Current)	5A	Contact Material	Silver Nickel (AgNi)
Contact Form	DPST-NO (2 Form A)	Coil Voltage	12VDC
Coil Type	Non Latching	Coil Resistance	270 Ohms
Coil Power	530 mW	Coil Current	44.0mA
