JJM2W-12V

Panasonic

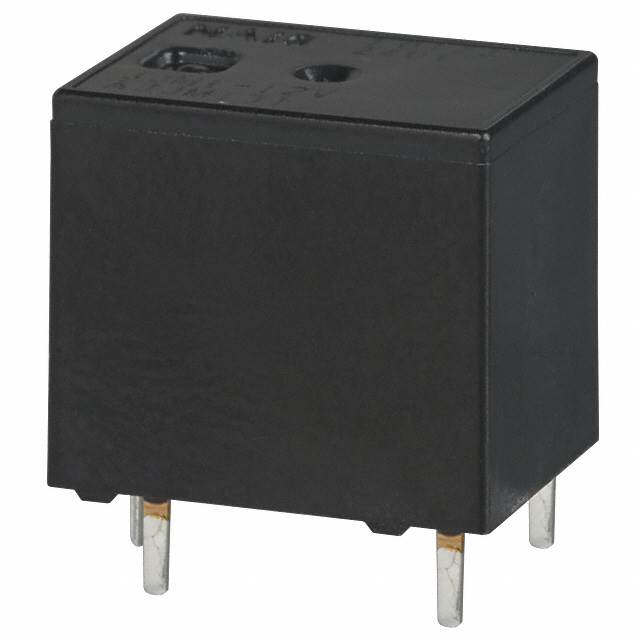

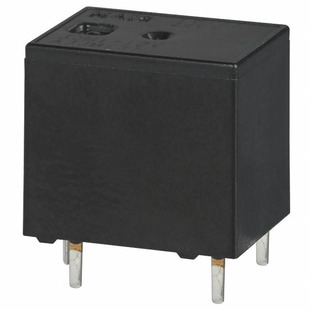

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JJM2W-12V
Manufacturer/Brand:	Panasonic
Product description	RELAY AUTOMOTIVE SPST 12A 12V
Datasheets:	1.JJM2W-12V.pdf 2.JJM2W-12V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	48455 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 48455 pcs

Reference Price (In US Dollars)

1 pcs: $1.333

10 pcs: $1.25

25 pcs: $1.111

50 pcs: $1.056

100 pcs: $1.00

250 pcs: $0.889

500 pcs: $0.833

1000 pcs: $0.778

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.333

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JJM2W-12V

Part Number	JJM2W-12V	Manufacturer	Panasonic
Description	RELAY AUTOMOTIVE SPST 12A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	48455 pcs	Data sheet	1.JJM2W-12V.pdf 2.JJM2W-12V.pdf
Turn On Voltage (Max)	6.9 VDC	Turn Off Voltage (Min)	1 VDC
Termination Style	PC Pin	Switching Voltage	14VDC - Nom
Series	JJM	Release Time	10ms
Packaging	Bulk	Other Names	255-3693 JJM2W-12V-ND JJM2W12V
Operating Temperature	-40°C ~ 85°C	Operate Time	10ms
Mounting Type	Through Hole	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Sealed - Fully
Contact Rating (Current)	12A	Contact Material	Silver Alloy, Cadmium Free
Contact Form	SPST-NO (DM) (1 Form U)	Coil Voltage	12VDC
Coil Type	Non Latching	Coil Resistance	225 Ohms
Coil Power	640 mW	Coil Current	83.3mA
