EVP-AEGE2A

Panasonic

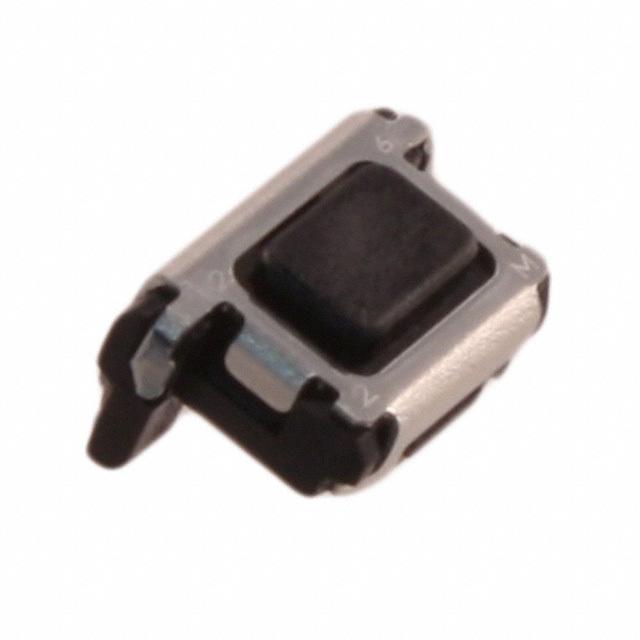

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EVP-AEGE2A
Manufacturer/Brand:	Panasonic
Product description	SWITCH TACTILE SPST-NO 0.02A 15V
Datasheets:	1.EVP-AEGE2A.pdf 2.EVP-AEGE2A.pdf 3.EVP-AEGE2A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	128772 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 128772 pcs

Reference Price (In US Dollars)

1 pcs: $0.352

10 pcs: $0.338

25 pcs: $0.319

50 pcs: $0.281

100 pcs: $0.255

250 pcs: $0.243

500 pcs: $0.236

1000 pcs: $0.185

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.352

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EVP-AEGE2A

Part Number	EVP-AEGE2A	Manufacturer	Panasonic
Description	SWITCH TACTILE SPST-NO 0.02A 15V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	128772 pcs	Data sheet	1.EVP-AEGE2A.pdf 2.EVP-AEGE2A.pdf 3.EVP-AEGE2A.pdf
Termination Style	SMD (SMT) Tab	Switch Travel	0.13mm
Switch Function	Off-Mom	Series	EVPAE
Packaging	Original-Reel®	Outline	4.50mm x 2.25mm
Other Names	P17063DKR	Operating Temperature	-40°C ~ 85°C
Operating Force	160gf	Mounting Type	Edge Mount, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	200,000 Cycles
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	-	Detailed Description	Tactile Switch SPST-NO Side Actuated Edge Mount, Right Angle
Contact Rating @ Voltage	0.02A @ 15VDC	Circuit	SPST-NO
Actuator Type	Rectangular Button	Actuator Orientation	Side Actuated
Actuator Material	-	Actuator Length, Right Angle	1.70mm
Actuator Height off PCB, Vertical	-
