ELF-18D624F

Panasonic

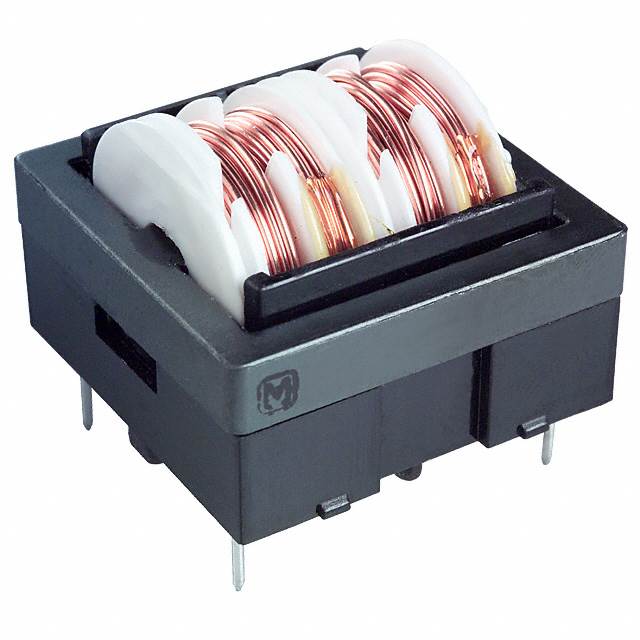

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ELF-18D624F
Manufacturer/Brand:	Panasonic
Product description	CMC 33MH 800MA 2LN TH
Datasheets:	1.ELF-18D624F.pdf 2.ELF-18D624F.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	40225 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 40225 pcs

Reference Price (In US Dollars)

1 pcs: $1.428

10 pcs: $1.189

25 pcs: $1.023

50 pcs: $0.999

100 pcs: $0.975

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.428

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ELF-18D624F

Part Number	ELF-18D624F	Manufacturer	Panasonic
Description	CMC 33MH 800MA 2LN TH	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	40225 pcs	Data sheet	1.ELF-18D624F.pdf 2.ELF-18D624F.pdf
Voltage Rating - DC	-	Voltage Rating - AC	250V
Size / Dimension	1.122" L x 1.142" W (28.50mm x 29.00mm)	Series	H
Ratings	-	Packaging	Bulk
Package / Case	Vertical, 4 PC Pin	Other Names	ELF18D624F PLK1036
Operating Temperature	-20°C ~ 105°C	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Inductance @ Frequency	33mH @ 1kHz
Height (Max)	0.925" (23.50mm)	Filter Type	-
Features	-	Detailed Description	33mH @ 1kHz 2 Line Common Mode Choke Through Hole 800mA DCR 707 mOhm (Typ)
DC Resistance (DCR) (Max)	707 mOhm (Typ)	Current Rating (Max)	800mA
Approvals	-
