DB2230400L

Panasonic

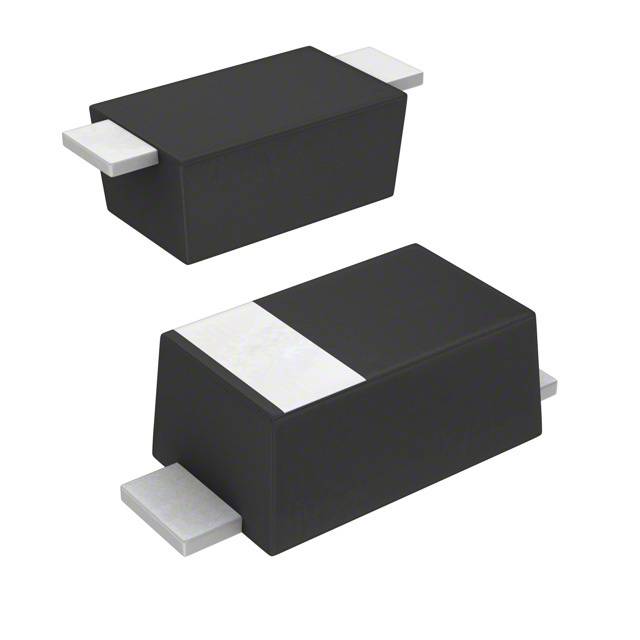

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DB2230400L
Manufacturer/Brand:	Panasonic
Product description	DIODE SCHOTTKY 30V 1A MINI2
Datasheets:	DB2230400L.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	558368 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 558368 pcs

Reference Price (In US Dollars)

1 pcs: $0.156

10 pcs: $0.123

100 pcs: $0.084

500 pcs: $0.058

1000 pcs: $0.043

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.156

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DB2230400L

Part Number	DB2230400L	Manufacturer	Panasonic
Description	DIODE SCHOTTKY 30V 1A MINI2	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	558368 pcs	Data sheet	DB2230400L.pdf
Voltage - Forward (Vf) (Max) @ If	530mV @ 1A	Voltage - DC Reverse (Vr) (Max)	30V
Supplier Device Package	Mini2-F4-B	Speed	Fast Recovery = 200mA (Io)
Series	-	Reverse Recovery Time (trr)	20ns
Packaging	Original-Reel®	Package / Case	SOD-123F
Other Names	DB2230400LDKR	Operating Temperature - Junction	150°C (Max)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky	Detailed Description	Diode Schottky 30V 1A Surface Mount Mini2-F4-B
Current - Reverse Leakage @ Vr	30µA @ 30V	Current - Average Rectified (Io)	1A
Capacitance @ Vr, F	59pF @ 10V, 1MHz	Base Part Number	DB22304
