CB1AHF-12V

Panasonic

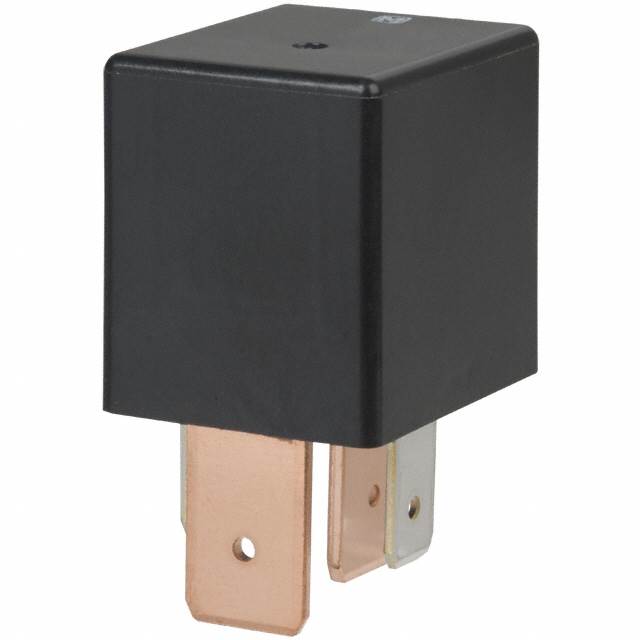

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CB1AHF-12V
Manufacturer/Brand:	Panasonic
Product description	RELAY AUTOMOTIVE SPST 70A 12V
Datasheets:	CB1AHF-12V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23204 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 23204 pcs

Reference Price (In US Dollars)

1 pcs: $2.336

10 pcs: $2.19

25 pcs: $1.947

50 pcs: $1.849

100 pcs: $1.752

250 pcs: $1.557

500 pcs: $1.46

1000 pcs: $1.363

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.336

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CB1AHF-12V

Part Number	CB1AHF-12V	Manufacturer	Panasonic
Description	RELAY AUTOMOTIVE SPST 70A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23204 pcs	Data sheet	CB1AHF-12V.pdf
Turn On Voltage (Max)	7 VDC	Turn Off Voltage (Min)	1.2 VDC
Termination Style	Plug In, Quick Connect - Multiple Sizes	Switching Voltage	14VDC - Nom
Series	CB	Release Time	15ms
Packaging	Bulk	Other Names	255-3734 CB1AHF-12V-ND CB1AHF12V
Operating Temperature	-40°C ~ 85°C	Operate Time	15ms
Mounting Type	Socketable	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Sealed - Flux Protection	Contact Rating (Current)	70A
Contact Material	Silver Alloy, Cadmium Free	Contact Form	SPST-NO (1 Form A)
Coil Voltage	12VDC	Coil Type	Non Latching
Coil Resistance	80 Ohms	Coil Power	1.8 W
Coil Current	150mA
