Panasonic

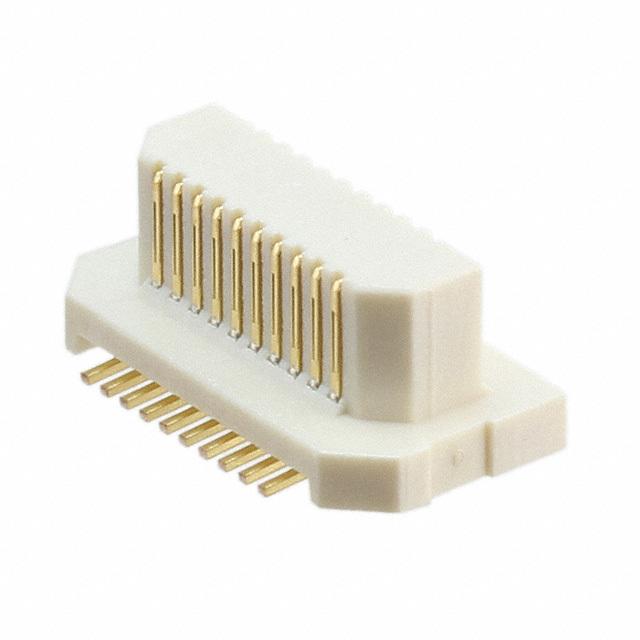

| Part Number | AXK6S20447M1 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | HEADER 20POS AU .020" SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14623 pcs | Data sheet | AXK6S20447M1.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Unshrouded |
| Series | V | Row Spacing - Mating | - |
| Pitch - Mating | 0.020" (0.50mm) | Packaging | Bulk |
| Overall Contact Length | - | Operating Temperature | 0°C ~ 70°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.130" (3.30mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 20 position 0.020" (0.50mm) |
| Current Rating | - | Contact Type | Center Strip Contact |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
