2SC4420

PanasonicPanasonic

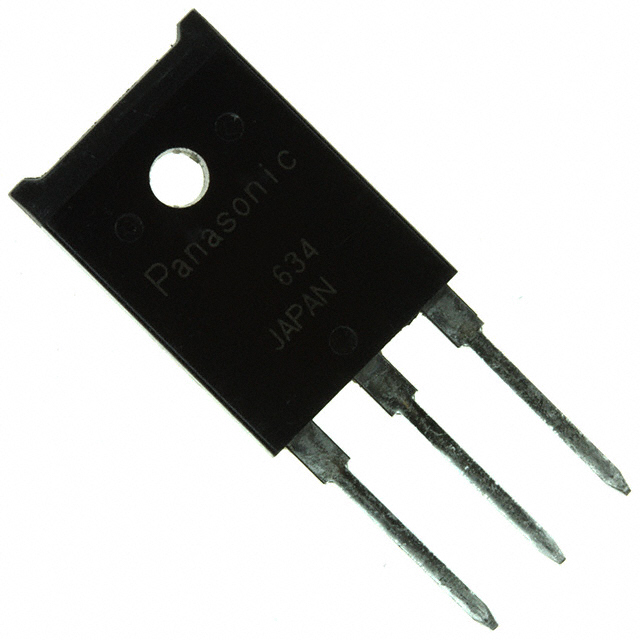

2SC4420 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 2SC4420
Manufacturer/Brand: Panasonic
Product description TRANS NPN 800V 3A TOP-3F
Datasheets: 2SC4420.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 5450 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 5450 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 2SC4420

Part Number 2SC4420 Manufacturer Panasonic
Description TRANS NPN 800V 3A TOP-3F Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 5450 pcs Data sheet 2SC4420.pdf
Voltage - Collector Emitter Breakdown (Max) 800V Vce Saturation (Max) @ Ib, Ic 1.5V @ 160mA, 800mA
Transistor Type NPN Supplier Device Package TOP-3F-A1
Series - Power - Max 3W
Packaging Bulk Package / Case TOP-3F
Operating Temperature 150°C (TJ) Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Frequency - Transition 10MHz Detailed Description Bipolar (BJT) Transistor NPN 800V 3A 10MHz 3W Through Hole TOP-3F-A1
DC Current Gain (hFE) (Min) @ Ic, Vce 6 @ 800mA, 5V Current - Collector Cutoff (Max) 50µA (ICBO)
Current - Collector (Ic) (Max) 3A
