XF2R18154A

OmronOmron

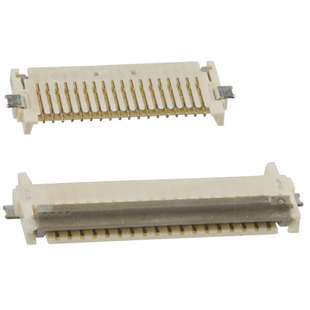

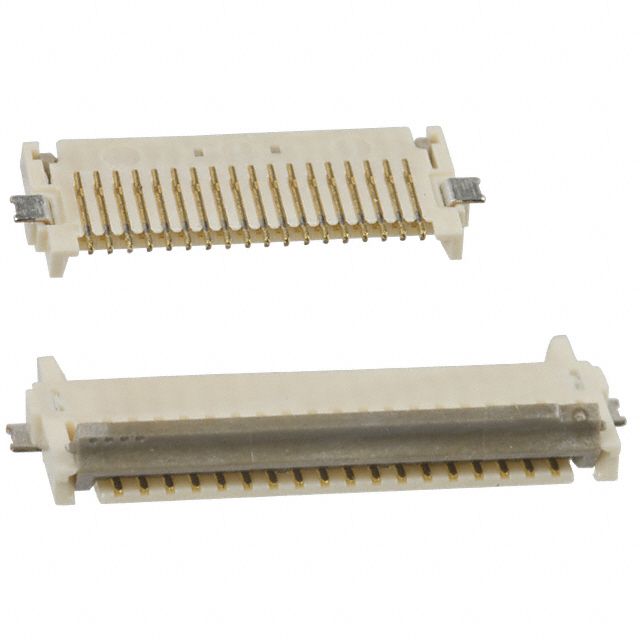

XF2R18154A Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: XF2R18154A
Manufacturer/Brand: Omron
Product description CONN FPC 18POS 0.50MM R/A
Datasheets: XF2R18154A.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 6039 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 6039 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of XF2R18154A

Part Number XF2R18154A Manufacturer Omron
Description CONN FPC 18POS 0.50MM R/A Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 6039 pcs Data sheet XF2R18154A.pdf
Voltage Rating 50V Termination Solder
Series XF2R Pitch 0.020" (0.50mm)
Packaging Original-Reel® Other Names OR708DKR
Operating Temperature -30°C ~ 85°C Number of Positions 18
Mounting Type Surface Mount, Right Angle Mating Cycles 20
Material Flammability Rating UL94 V-0 Locking Feature Rotary Lock, Backlock
Lead Free Status / RoHS Status Lead free / RoHS Compliant Housing Material Liquid Crystal Polymer (LCP)
Housing Color Natural Height Above Board 0.035" (0.88mm)
Flat Flex Type FPC Features Solder Retention
FFC, FCB Thickness 0.12mm Detailed Description 18 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating 0.3A Contact Material Copper Alloy
Contact Finish Thickness 5.90µin (0.150µm) Contact Finish Gold
Connector/Contact Type Contacts, Top and Bottom Cable End Type Tabbed
Actuator Material Liquid Crystal Polymer (LCP) Actuator Color Brown
