Omron

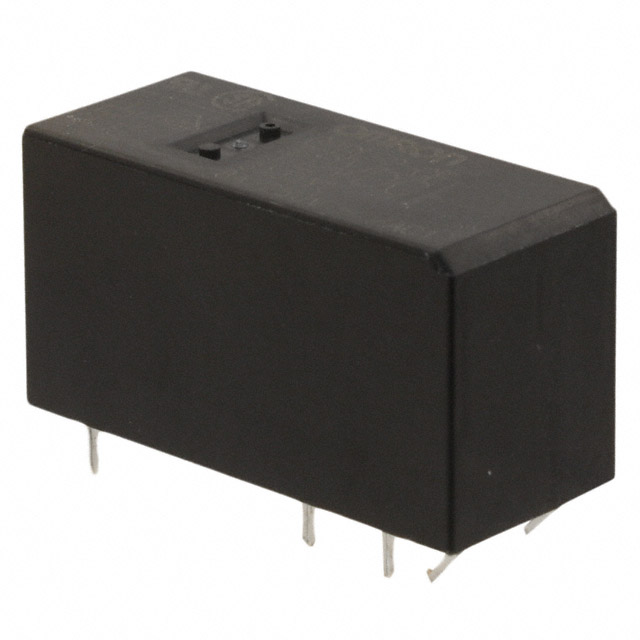

| Part Number | G2RL-2-CF DC12 | Manufacturer | Omron |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPDT 8A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 45842 pcs | Data sheet | G2RL-2-CF DC12.pdf |
| Turn On Voltage (Max) | 8.4 VDC | Turn Off Voltage (Min) | 1.2 VDC |
| Termination Style | PC Pin | Switching Voltage | 440VAC, 300VDC - Max |
| Series | G2RL | Release Time | 5ms |
| Relay Type | General Purpose | Packaging | Tube |
| Other Names | G2RL-2-CF DC12 BY OMB G2RL-2-CF-DC12 G2RL-2-CF-DC12-ND G2RL1042E G2RL2CF12DC G2RL2CFDC12 G2RL2CFDC12BYOMB Z3085 |
Operating Temperature | -40°C ~ 85°C |
| Operate Time | 15ms | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Insulation - Class F, Sealed - Flux Protection | Detailed Description | General Purpose Relay DPDT (2 Form C) 12VDC Coil Through Hole |
| Contact Rating (Current) | 8A | Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | DPDT (2 Form C) | Coil Voltage | 12VDC |
| Coil Type | Non Latching | Coil Resistance | 360 Ohms |
| Coil Power | 400 mW | Coil Current | 33.3mA |
