HomeProductsCapacitorsAluminum Electrolytic CapacitorsUPW1C560MDH6

UPW1C560MDH6

NichiconNichicon

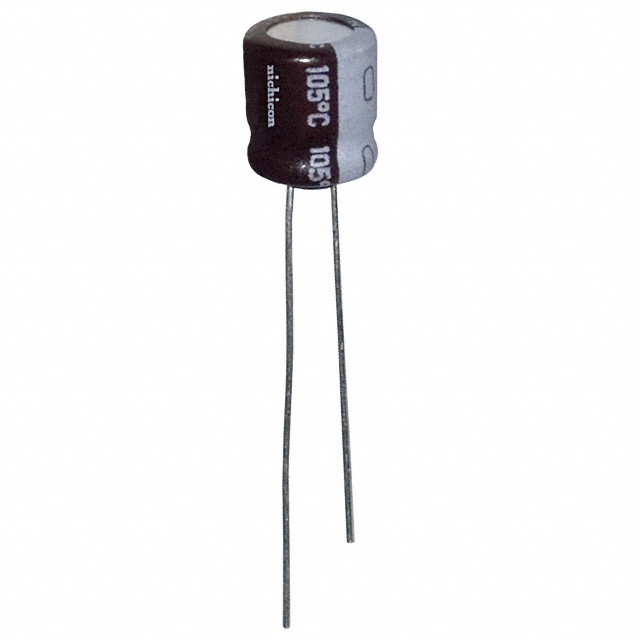

UPW1C560MDH6 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: UPW1C560MDH6
Manufacturer/Brand: Nichicon
Product description CAP ALUM 56UF 20% 16V RADIAL
Datasheets: 1.UPW1C560MDH6.pdf2.UPW1C560MDH6.pdf
RoHs Status Contains lead / RoHS non-compliant
Stock Condition 4888 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 4888 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of UPW1C560MDH6

Part Number UPW1C560MDH6 Manufacturer Nichicon
Description CAP ALUM 56UF 20% 16V RADIAL Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Quantity Available 4888 pcs Data sheet 1.UPW1C560MDH6.pdf2.UPW1C560MDH6.pdf
Voltage - Rated 16V Tolerance ±20%
Surface Mount Land Size - Size / Dimension 0.248" Dia (6.30mm)
Series UPW Ripple Current @ Low Frequency 60mA @ 120Hz
Ripple Current @ High Frequency 200mA @ 100kHz Ratings -
Polarization Polar Packaging Bulk
Package / Case Radial, Can Operating Temperature -55°C ~ 105°C
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lifetime @ Temp. 2000 Hrs @ 105°C Lead Spacing 0.098" (2.50mm)
Lead Free Status / RoHS Status Contains lead / RoHS non-compliant Impedance 450 mOhms
Height - Seated (Max) 0.276" (7.00mm) ESR (Equivalent Series Resistance) -
Detailed Description 56µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C Capacitance 56µF
Applications General Purpose
