Nexperia
| Part Number | PBLS1503Y,115 | Manufacturer | Nexperia |
|---|---|---|---|
| Description | TRANS NPN PREBIAS/PNP 6TSSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 709245 pcs | Data sheet | |
| Voltage - Collector Emitter Breakdown (Max) | 50V, 15V | Vce Saturation (Max) @ Ib, Ic | 150mV @ 500µA, 10mA / 250mV @ 50mA, 500mA |
| Transistor Type | 1 NPN Pre-Biased, 1 PNP | Supplier Device Package | 6-TSSOP |
| Series | - | Resistor - Emitter Base (R2) | 10 kOhms |
| Resistor - Base (R1) | 10 kOhms | Power - Max | 300mW |

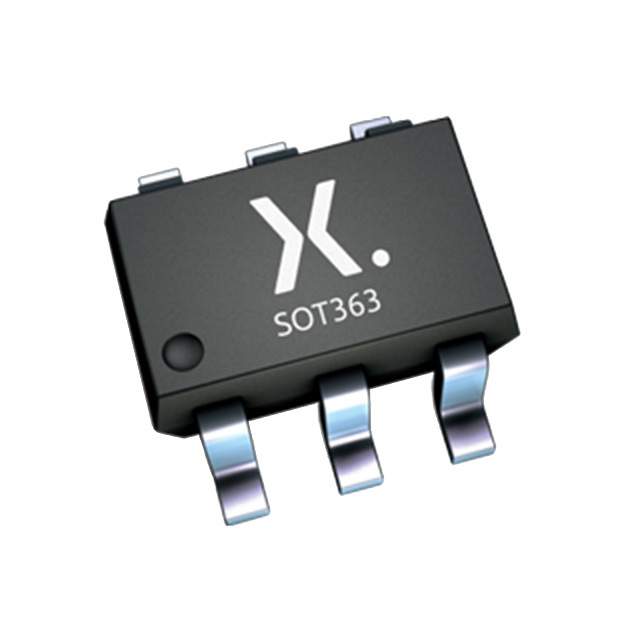

| Packaging | Tape & Reel (TR) | Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Other Names | 1727-5688-2 568-7222-2 568-7222-2-ND 934058054115 PBLS1503Y T/R PBLS1503Y T/R-ND PBLS1503Y,115-ND |
Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Transition | 280MHz | Detailed Description | Pre-Biased Bipolar Transistor (BJT) 1 NPN Pre-Biased, 1 PNP 50V, 15V 100mA, 500mA 280MHz 300mW Surface Mount 6-TSSOP |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 5mA, 5V / 150 @ 100mA. 2V | Current - Collector Cutoff (Max) | 1µA, 100nA |
| Current - Collector (Ic) (Max) | 100mA, 500mA | Base Part Number | PBLS1503 |
