NMB Technologies Corp.

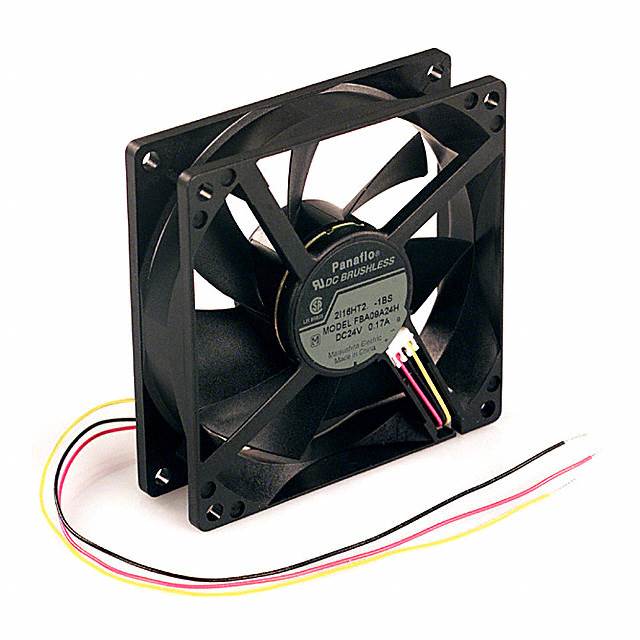

| Part Number | FBA09A24H1BS | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 92X25.5MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4589 pcs | Data sheet | 1.FBA09A24H1BS.pdf2.FBA09A24H1BS.pdf3.FBA09A24H1BS.pdf |
| Width | 25.50mm | Weight | 0.243 lb (110.22g) |
| Voltage Range | 14 ~ 27.6VDC | Voltage - Rated | 24VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.169 in H2O (42.1 Pa) |
| Size / Dimension | Square - 92mm L x 92mm H | Series | FBA |
| RPM | 2900 RPM | Power (Watts) | 3.36W |
| Other Names | P11046 P9787 P9787-ND |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 35.0 dB | Material - Frame | - |
| Material - Blade | - | Lifetime @ Temp. | 50000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | Locked Rotor Sensor | Fan Type | Tubeaxial |
| Current Rating | 0.140A | Bearing Type | Hydro-wave (HWB) |
| Approvals | CSA, UL | Air Flow | 56.8 CFM (1.59m³/min) |
