NMB Technologies Corp.

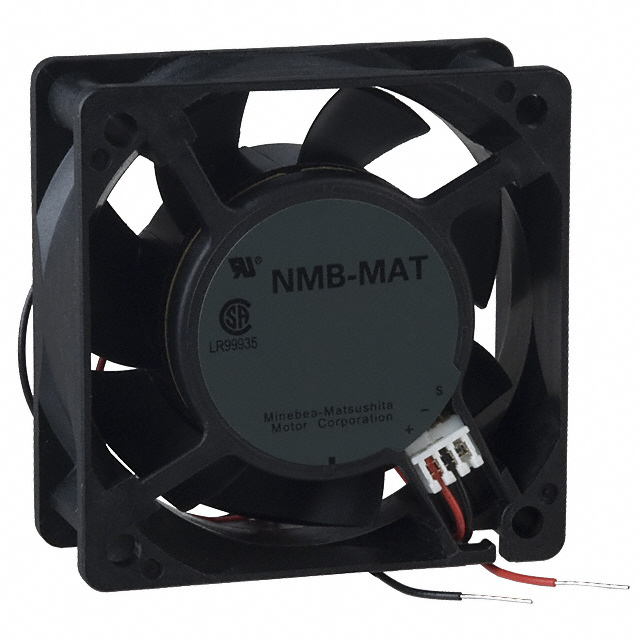

| Part Number | FBA06A12H1A | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 60X25.5MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5375 pcs | Data sheet | 1.FBA06A12H1A.pdf2.FBA06A12H1A.pdf3.FBA06A12H1A.pdf |
| Width | 25.50mm | Weight | 0.198 lb (89.81g) |
| Voltage Range | 7 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.204 in H2O (51.0 Pa) |
| Size / Dimension | Square - 60mm L x 60mm H | Series | FBA |
| RPM | 4200 RPM | Power (Watts) | 1.86W |
| Other Names | FBA 06A12H1A FBA-06A12H1A P9729 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 32.0 dB | Material - Frame | - |
| Material - Blade | - | Lifetime @ Temp. | 50000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.155A | Bearing Type | Hydro-wave (HWB) |
| Approvals | CSA, UL | Air Flow | 19.1 CFM (0.535m³/min) |
