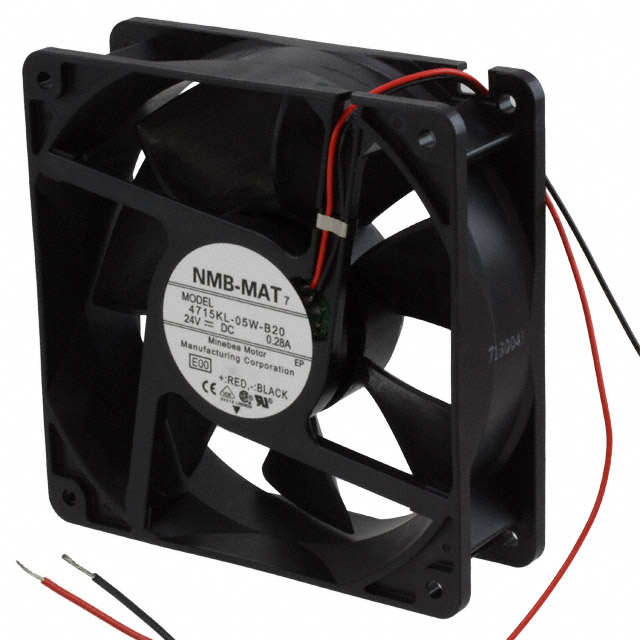

NMB Technologies Corp.
| Part Number | 4715KL-05W-B20-E00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 119X38.4MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7740 pcs | Data sheet | 1.4715KL-05W-B20-E00.pdf2.4715KL-05W-B20-E00.pdf3.4715KL-05W-B20-E00.pdf |
| Width | 38.40mm | Weight | 0.573 lb (259.91g) |
| Voltage Range | 10 ~ 27.6VDC | Voltage - Rated | 24VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.220 in H2O (54.8 Pa) |
| Size / Dimension | Square - 119mm L x 119mm H | Series | 11938KA |
| RPM | 2650 RPM | Power (Watts) | 5.04W |
| Other Names | 11938KA-24K-EA-00 4715KL-05W-B20-E00-ND 4715KL05WB20E00 P15674 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 41.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | 50000 Hrs @ 25°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.210A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 97.0 CFM (2.72m³/min) |
