NMB Technologies Corp.

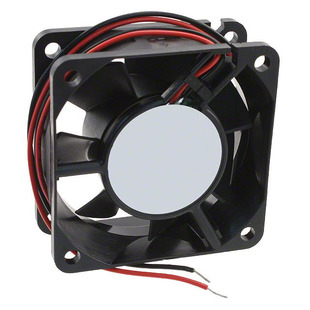

| Part Number | 2410ML-04W-B20-E00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 60X25MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13877 pcs | Data sheet | 1.2410ML-04W-B20-E00.pdf2.2410ML-04W-B20-E00.pdf3.2410ML-04W-B20-E00.pdf |
| Width | 25.00mm | Weight | 0.143 lb (64.86g) |
| Voltage Range | 6 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.128 in H2O (31.9 Pa) |
| Size / Dimension | Square - 60mm L x 60mm H | Series | 2410ML |
| RPM | 3600 RPM | Power (Watts) | 1.44W |
| Other Names | 06025MA-12K-EA-00 2410ML-04W-B20-E00-ND 2410ML04WB20E00 2410ML04WB20E00-ND P15628 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 28.0 dB | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.120A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 16.9 CFM (0.473m³/min) |
