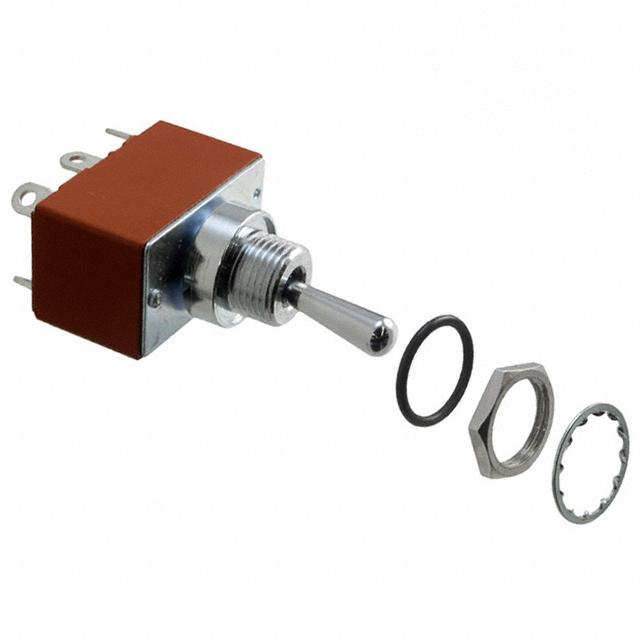

NKK Switches
| Part Number | S29AW | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TOGGLE DPDT 15A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10421 pcs | Data sheet | S29AW.pdf |
| Voltage Rating - DC | 30V | Voltage Rating - AC | 125V |
| Termination Style | Solder Lug | Switch Function | On-Off-Mom |
| Series | S | Panel Cutout Dimensions | Circular - 12.50mm Dia |
| Packaging | Bulk | Other Names | 360-1748 360-1748-ND 360-1892 S29AW-RO |
| Operating Temperature | -30°C ~ 70°C | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Electrical Life | 25,000 Cycles | Detailed Description | Toggle Switch DPDT Panel Mount |
| Current Rating | 15A (AC), 20A (DC) | Circuit | DPDT |
| Bushing Thread | M12 x 1 | Actuator Type | Standard Round |
| Actuator Material | Brass, Chrome Plated | Actuator Length | 17.50mm |
