S28AWF

NKK Switches

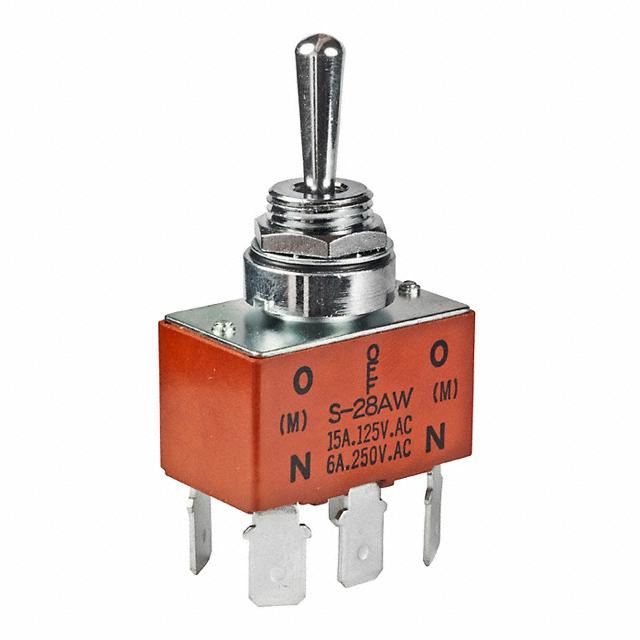

Image may be representation. See specifications for product details.

Product Overview

Part Number:	S28AWF
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TOGGLE DPDT 15A 125V
Datasheets:	S28AWF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9402 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 9402 pcs

Reference Price (In US Dollars)

1 pcs: $4.97

10 pcs: $4.70

25 pcs: $4.566

50 pcs: $4.432

100 pcs: $4.297

250 pcs: $4.163

500 pcs: $3.492

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.97

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of S28AWF

Part Number	S28AWF	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9402 pcs	Data sheet	S28AWF.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	Mom-Off-Mom
Series	S	Panel Cutout Dimensions	Circular - 12.50mm Dia
Packaging	Bulk	Other Names	S28AWF-RO S28AWF-RO-ND
Operating Temperature	-30°C ~ 70°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	-
Electrical Life	25,000 Cycles	Detailed Description	Toggle Switch DPDT Panel Mount
Current Rating	15A (AC), 20A (DC)	Circuit	DPDT
Bushing Thread	M12 x 1	Actuator Type	Standard Round
Actuator Material	Brass, Chrome Plated	Actuator Length	17.50mm
