NP0115AG03LCF-JCF13

NKK Switches

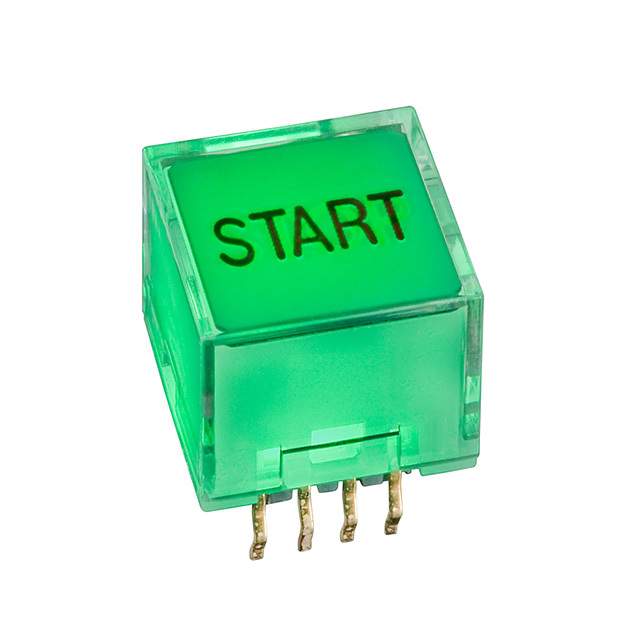

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NP0115AG03LCF-JCF13
Manufacturer/Brand:	NKK Switches
Product description	SWITCH PUSH SPST-NO 0.4VA 28V
Datasheets:	1.NP0115AG03LCF-JCF13.pdf 2.NP0115AG03LCF-JCF13.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4721 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4721 pcs

Reference Price (In US Dollars)

1 pcs: $9.294

10 pcs: $9.16

25 pcs: $9.028

50 pcs: $8.364

100 pcs: $8.231

250 pcs: $7.302

500 pcs: $7.036

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$9.294

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NP0115AG03LCF-JCF13

Part Number	NP0115AG03LCF-JCF13	Manufacturer	NKK Switches
Description	SWITCH PUSH SPST-NO 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4721 pcs	Data sheet	1.NP0115AG03LCF-JCF13.pdf 2.NP0115AG03LCF-JCF13.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	28V
Type	Standard, Illuminated	Termination Style	PC Pin
Switch Function	Off-Mom	Series	NP01
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	360-3544 NP0115AG03LCF-JCF13-ND	Operating Temperature	-25°C ~ 50°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	500,000 Cycles	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	2.0, 3.5 VDC	Illumination Type, Color	LED, Red/Green
Features	START/STOP Symbol	Electrical Life	500,000 Cycles
Detailed Description	Pushbutton Switch SPST-NO Standard, Illuminated Through Hole	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	Green, Red	Circuit	SPST-NO
Actuator Type	Square, Button, Alternating Legend
