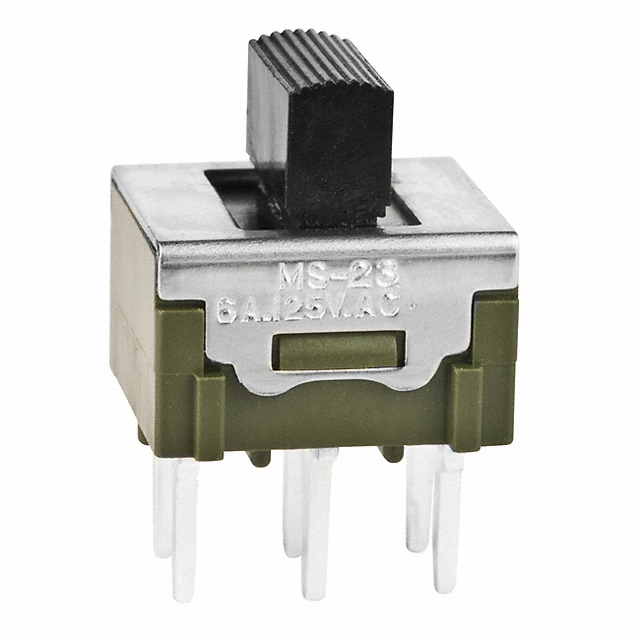

MS23BNW03

NKK Switches

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MS23BNW03
Manufacturer/Brand:	NKK Switches
Product description	SWITCH SLIDE DPDT 6A 125V
Datasheets:	MS23BNW03.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	25533 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 25533 pcs

Reference Price (In US Dollars)

1 pcs: $1.938

10 pcs: $1.895

25 pcs: $1.811

50 pcs: $1.601

100 pcs: $1.58

250 pcs: $1.558

500 pcs: $1.285

1000 pcs: $1.20

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.938

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MS23BNW03

Part Number	MS23BNW03	Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25533 pcs	Data sheet	MS23BNW03.pdf
Voltage Rating - AC	125V	Termination Style	PC Pin
Switch Travel	3.50mm	Switch Function	On-Off-On
Series	MS	Packaging	Bulk
Other Names	MS23BNW03-RO MS23BNW03-RO-ND	Operating Temperature	-30°C ~ 85°C
Operating Force	-	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Epoxy Sealed Terminals	Electrical Life	25,000 Cycles
Detailed Description	Slide Switch DPDT Through Hole	Current Rating	6A (AC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Silver Alloy
Contact Finish	Silver	Circuit	DPDT
Actuator Type	Standard	Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Length	5.10mm
