MS23AFW01

NKK Switches

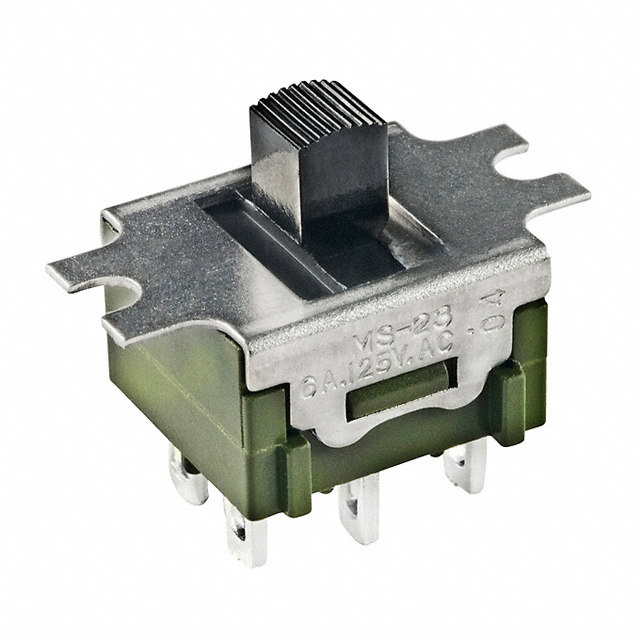

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MS23AFW01
Manufacturer/Brand:	NKK Switches
Product description	SWITCH SLIDE DPDT 6A 125V
Datasheets:	MS23AFW01.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	34821 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 34821 pcs

Reference Price (In US Dollars)

1 pcs: $1.802

10 pcs: $1.761

25 pcs: $1.683

50 pcs: $1.487

100 pcs: $1.468

250 pcs: $1.448

500 pcs: $1.194

1000 pcs: $1.115

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.802

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MS23AFW01

Part Number	MS23AFW01	Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34821 pcs	Data sheet	MS23AFW01.pdf
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Travel	3.50mm	Switch Function	On-Off-On
Series	MS	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Operating Force	-
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Manufacturer Standard Lead Time	7 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Epoxy Sealed Terminals
Electrical Life	25,000 Cycles	Detailed Description	Slide Switch DPDT Panel Mount
Current Rating	6A (AC)	Contact Timing	Non-Shorting (BBM)
Contact Material	Silver Alloy	Contact Finish	Silver
Circuit	DPDT	Actuator Type	Standard
Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled	Actuator Length	5.10mm
