JF15CP2D

NKK Switches

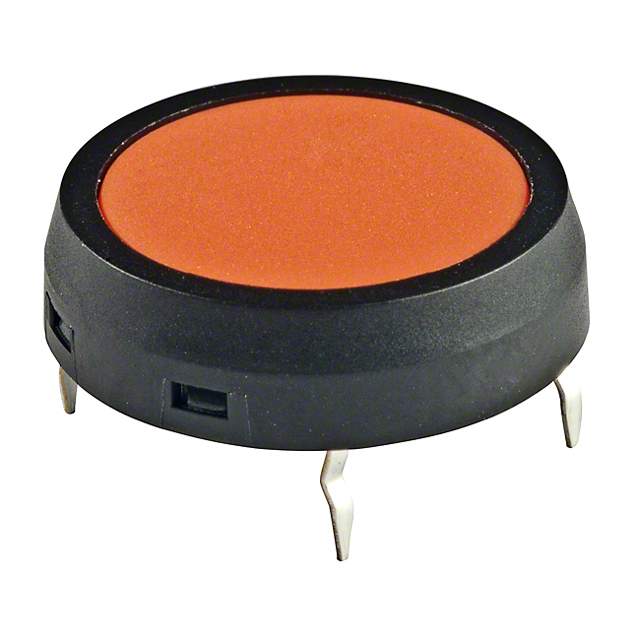

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JF15CP2D
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TACTILE SPST-NO 0.05A 24V
Datasheets:	JF15CP2D.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	57921 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 57921 pcs

Reference Price (In US Dollars)

1 pcs: $1.148

10 pcs: $1.103

25 pcs: $1.015

50 pcs: $0.883

100 pcs: $0.839

250 pcs: $0.817

500 pcs: $0.794

1000 pcs: $0.618

5000 pcs: $0.574

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.148

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JF15CP2D

Part Number	JF15CP2D	Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	57921 pcs	Data sheet	JF15CP2D.pdf
Termination Style	PC Pin	Switch Travel	0.40mm
Switch Function	Off-Mom	Series	JF
Packaging	Tray	Outline	17.70mm Dia
Other Names	360-2817 JF15CP2D-ND	Operating Temperature	-25°C ~ 85°C
Operating Force	300gf	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	500,000 Cycles
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Process Sealed	Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole
Contact Rating @ Voltage	0.05A @ 24VDC	Circuit	SPST-NO
Actuator Type	Round Button	Actuator Orientation	Top Actuated
Actuator Material	Polyamide (PA), Nylon	Actuator Length, Right Angle	-
Actuator Height off PCB, Vertical	5.08mm
