CS22BNW03

NKK Switches

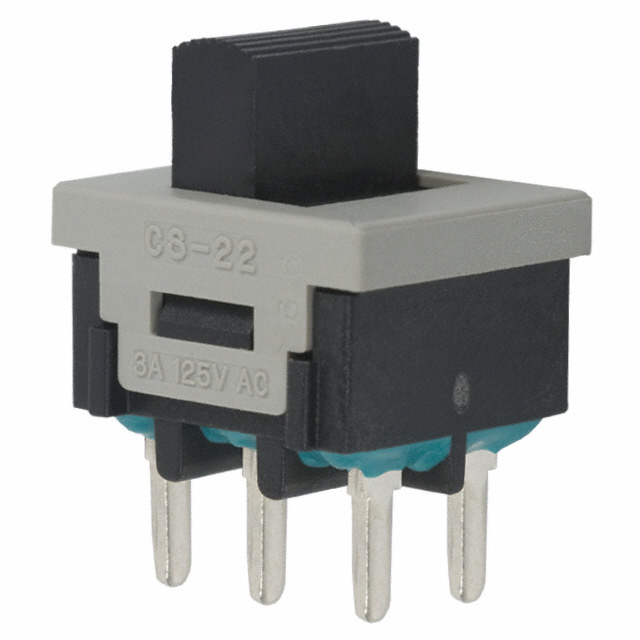

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CS22BNW03
Manufacturer/Brand:	NKK Switches
Product description	SWITCH SLIDE DPDT 3A 125V
Datasheets:	CS22BNW03.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	55151 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 55151 pcs

Reference Price (In US Dollars)

1 pcs: $1.051

10 pcs: $1.008

25 pcs: $0.987

50 pcs: $0.858

100 pcs: $0.837

250 pcs: $0.815

500 pcs: $0.687

1000 pcs: $0.644

5000 pcs: $0.59

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.051

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CS22BNW03

Part Number	CS22BNW03	Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	55151 pcs	Data sheet	CS22BNW03.pdf
Voltage Rating - AC	125V	Termination Style	PC Pin
Switch Travel	2.20mm	Switch Function	On-On
Series	CS	Packaging	Tray
Other Names	360-2132	Operating Temperature	-30°C ~ 85°C
Operating Force	-	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Epoxy Sealed Terminals	Electrical Life	20,000 Cycles
Detailed Description	Slide Switch DPDT Through Hole	Current Rating	3A (AC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Copper
Contact Finish	Silver	Circuit	DPDT
Actuator Type	Standard	Actuator Material	Polyamide (PA), Nylon, Glass Filled
Actuator Length	5.10mm
