CS12ANW03

NKK Switches

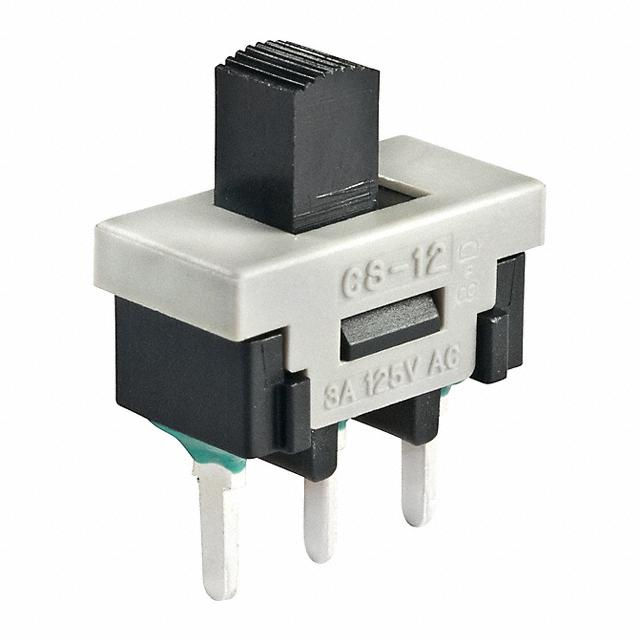

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CS12ANW03
Manufacturer/Brand:	NKK Switches
Product description	SWITCH SLIDE SPDT 3A 125V
Datasheets:	CS12ANW03.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	72745 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 72745 pcs

Reference Price (In US Dollars)

1 pcs: $0.807

10 pcs: $0.772

25 pcs: $0.756

50 pcs: $0.657

100 pcs: $0.641

250 pcs: $0.624

500 pcs: $0.526

1000 pcs: $0.493

5000 pcs: $0.452

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.807

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CS12ANW03

Part Number	CS12ANW03	Manufacturer	NKK Switches
Description	SWITCH SLIDE SPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	72745 pcs	Data sheet	CS12ANW03.pdf
Voltage Rating - AC	125V	Termination Style	PC Pin
Switch Travel	2.20mm	Switch Function	On-On
Series	CS	Packaging	Tray
Other Names	360-2131	Operating Temperature	-30°C ~ 85°C
Operating Force	-	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Epoxy Sealed Terminals
Electrical Life	20,000 Cycles	Detailed Description	Slide Switch SPDT Through Hole
Current Rating	3A (AC)	Contact Timing	Non-Shorting (BBM)
Contact Material	Copper	Contact Finish	Silver
Circuit	SPDT	Actuator Type	Standard
Actuator Material	Polyamide (PA), Nylon, Glass Filled	Actuator Length	5.10mm
