NKK Switches

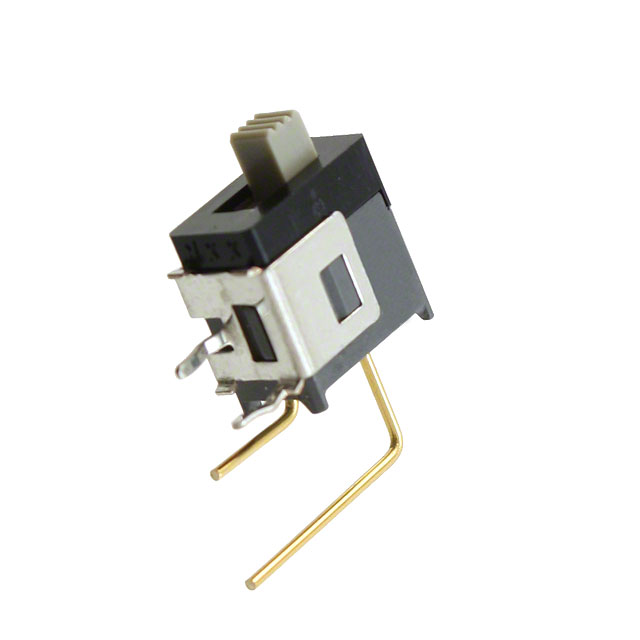

| Part Number | AS11AV | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH SLIDE SPST 0.4VA 28V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39096 pcs | Data sheet | AS11AV.pdf |
| Voltage Rating - DC | 28V | Voltage Rating - AC | 28V |
| Termination Style | PC Pin | Switch Travel | 2.50mm |
| Switch Function | On-Off | Series | AS |
| Packaging | Tray | Other Names | 360-2609 AS11AV-ND AS11AV-RO AS11AV-RO-ND |
| Operating Temperature | -30°C ~ 85°C | Operating Force | 260gf |
| Mounting Type | Through Hole, Right Angle, Vertical | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 50,000 Cycles | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Epoxy Sealed Terminals |
| Electrical Life | 50,000 Cycles | Detailed Description | Slide Switch SPST Through Hole, Right Angle, Vertical |
| Current Rating | 0.4VA (AC/DC) | Contact Timing | Non-Shorting (BBM) |
| Contact Material | Phosphor Bronze | Contact Finish | Gold |
| Circuit | SPST | Actuator Type | Standard |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled | Actuator Length | 2.50mm |
