76601/24HVC

Murata Power Solutions

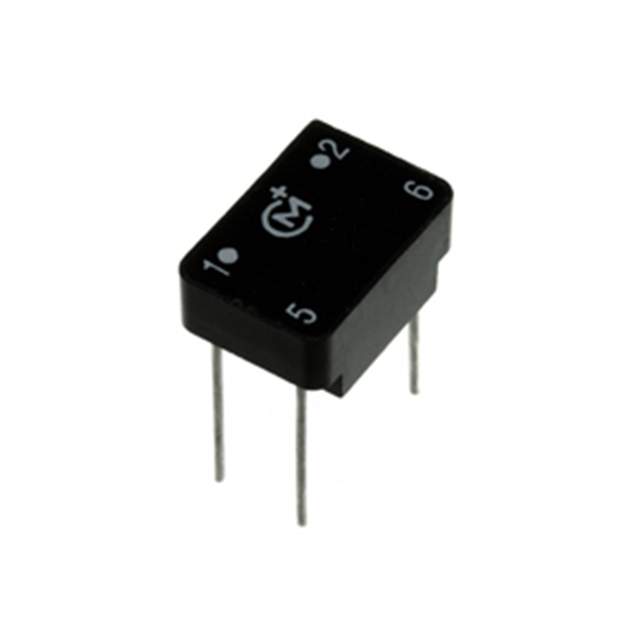

Image may be representation. See specifications for product details.

Product Overview

Part Number:	76601/24HVC
Manufacturer/Brand:	Murata Power Solutions
Product description	PULSE XFMR 1:1 11.7MH
Datasheets:	76601/24HVC.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	54579 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 54579 pcs

Reference Price (In US Dollars)

1 pcs: $0.786

25 pcs: $0.761

50 pcs: $0.662

100 pcs: $0.641

250 pcs: $0.624

500 pcs: $0.618

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.786

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 76601/24HVC

Part Number	76601/24HVC	Manufacturer	Murata Power Solutions
Description	PULSE XFMR 1:1 11.7MH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	54579 pcs	Data sheet	76601/24HVC.pdf
Turns Ratio - Primary:Secondary	1:1	Transformer Type	General Purpose
Size / Dimension	0.500" L x 0.350" W (12.70mm x 8.89mm)	Series	766
Packaging	Tube	Other Names	76601/24HVC-ND 811-3694
Operating Temperature	0°C ~ 70°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	11.7mH
Height - Seated (Max)	0.250" (6.35mm)	Energy Time (E.T.)	50.5V µS
