NFL15ST157X0J3D

Murata Electronics

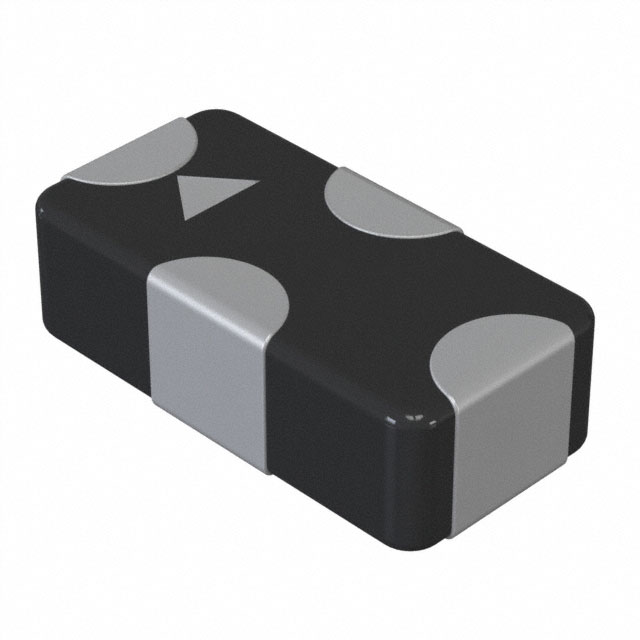

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NFL15ST157X0J3D
Manufacturer/Brand:	Murata Electronics
Product description	FILTER LC(T) 115NH/22PF SMD
Datasheets:	1.NFL15ST157X0J3D.pdf 2.NFL15ST157X0J3D.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	252227 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 252227 pcs

Reference Price (In US Dollars)

10000 pcs: $0.091

30000 pcs: $0.087

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.091

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NFL15ST157X0J3D

Part Number	NFL15ST157X0J3D	Manufacturer	Murata Electronics
Description	FILTER LC(T) 115NH/22PF SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	252227 pcs	Data sheet	1.NFL15ST157X0J3D.pdf 2.NFL15ST157X0J3D.pdf
Voltage - Rated	6.3V	Values	L = 115nH, C = 22pF
Type	Low Pass	Technology	LC (T-Type)
Size / Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)	Series	EMIFIL®, NFL15
Resistance - Channel (Ohms)	-	Packaging	Tape & Reel (TR)
Package / Case	0402 (1005 Metric), 4 PC Pad	Other Names	490-16916-2 NFL15ST157X0J3D-ND
Operating Temperature	-40°C ~ 85°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height	0.014" (0.35mm)	Filter Order	3rd
ESD Protection	No	Detailed Description	LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel L = 115nH, C = 22pF 50mA 0402 (1005 Metric), 4 PC Pad
Current	50mA	Center / Cutoff Frequency	150MHz (Cutoff)
Attenuation Value	6dB @ 0MHz ~ 150MHz	Applications	General Purpose
