803-43-094-61-001000

Mill-MaxMill-Max

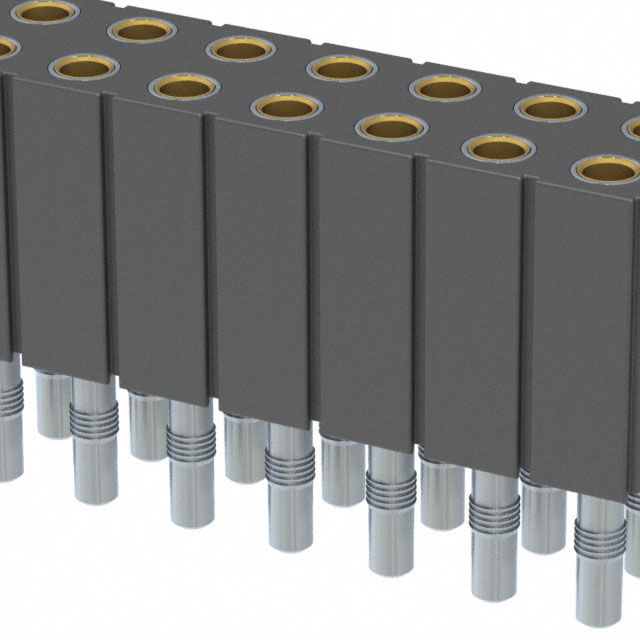

803-43-094-61-001000 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 803-43-094-61-001000
Manufacturer/Brand: Mill-Max
Product description CONN HDR PIN
Datasheets:
RoHs Status RoHS Compliant
Stock Condition 3515 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 3515 pcs
Reference Price (In US Dollars)
50 pcs
$9.776
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$9.776

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 803-43-094-61-001000

Part Number 803-43-094-61-001000 Manufacturer Mill-Max
Description CONN HDR PIN Lead Free Status / RoHS Status RoHS Compliant
Quantity Available 3515 pcs Data sheet
Voltage Rating - Termination Press-Fit, Solder
Style Board to Board Series 803
Row Spacing - Mating 0.100" (2.54mm) RoHS Status RoHS Compliant
Pitch - Mating 0.100" (2.54mm) Packaging Bulk
Operating Temperature -55°C ~ 125°C Number of Rows 2
Number of Positions Loaded All Number of Positions 94
Mounting Type Through Hole Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 4 Weeks
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester Insulation Height 0.276" (7.00mm)
Insulation Color Black Ingress Protection -
Features - Fastening Type Push-Pull
Detailed Description 94 Position Receptacle Connector Through Hole Current Rating 4.5A
Contact Type Female Socket Contact Shape Circular
Contact Material Beryllium Copper Contact Length - Post 0.104" (2.64mm)
Contact Finish Thickness - Post 200.0µin (5.08µm) Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin Contact Finish - Mating Gold
Connector Type Receptacle Applications -
