5200-0-19-80-15-27-10-0

Mill-Max

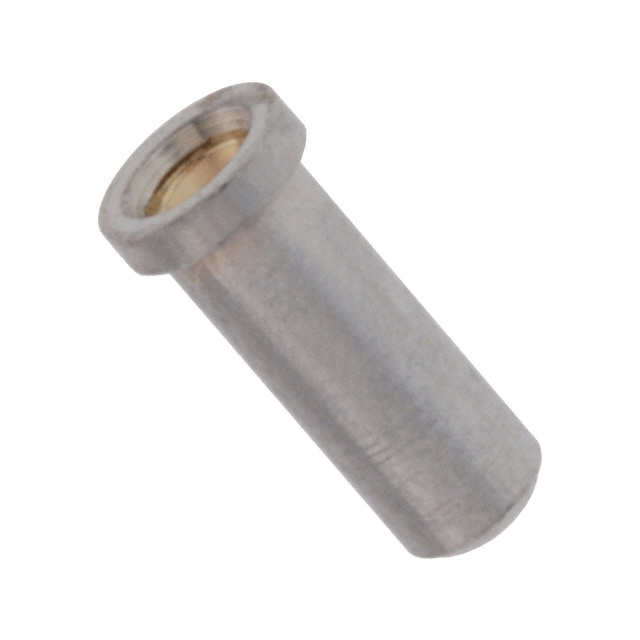

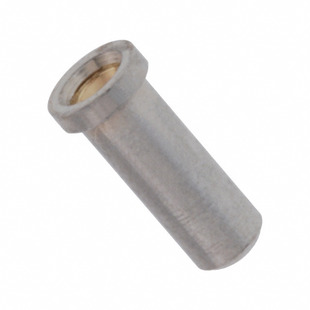

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5200-0-19-80-15-27-10-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PIN RCPT
Datasheets:	1.5200-0-19-80-15-27-10-0.pdf 2.5200-0-19-80-15-27-10-0.pdf
RoHs Status	RoHS Compliant
Stock Condition	85142 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 85142 pcs

Reference Price (In US Dollars)

1 pcs: $0.529

10 pcs: $0.479

25 pcs: $0.45

50 pcs: $0.43

100 pcs: $0.411

250 pcs: $0.372

500 pcs: $0.342

1000 pcs: $0.293

2500 pcs: $0.274

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.529

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5200-0-19-80-15-27-10-0

Part Number	5200-0-19-80-15-27-10-0	Manufacturer	Mill-Max
Description	CONN PIN RCPT	Lead Free Status / RoHS Status	RoHS Compliant
Quantity Available	85142 pcs	Data sheet	1.5200-0-19-80-15-27-10-0.pdf 2.5200-0-19-80-15-27-10-0.pdf
Termination	Surface Mount	Tail Type	No Tail
Tail Diameter	-	Socket Depth	0.084" (2.13mm)
Series	5200	RoHS Status	RoHS Compliant
Pin Hole Diameter	0.047" (1.19mm)	Packaging	Bulk
Other Names	5200-0-19-80-15-27-10-0-ND ED10173	Operating Temperature	-55°C ~ 125°C
Mounting Hole Diameter	0.103" (2.62mm)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	5 Weeks	Length - Overall	0.180" (4.57mm)
Insertion Force	-	Flange Diameter	0.093" (2.36mm)
Features	-	Detailed Description	Pin Receptacle Connector 0.020" ~ 0.032" (0.51mm ~ 0.81mm) No Tail Surface Mount
Contact Material	Beryllium Copper	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold	Board Thickness	-
Accepts Pin Diameter	0.020" ~ 0.032" (0.51mm ~ 0.81mm)
